OKdo Nano C100 Developer Kit – NVIDIA Jetson Nano 4GB, 16GB eMMC
Product Description
The OKdo Nano C100 Developer Kit is a compact AI and embedded computing development platform powered by the NVIDIA Jetson Nano 4GB module.
It combines a quad-core ARM Cortex-A57 processor, 128-core NVIDIA Maxwell GPU, 4GB 64-bit LPDDR4 memory and 16GB eMMC storage. The board provides extensive connectivity, including 4 × USB 3.0, Gigabit Ethernet, HDMI 2.0, eDP 1.4, MIPI CSI-2 camera interfaces, M.2 Key E and a 40-pin expansion interface supporting GPIO, I2C, I2S, SPI and UART.
The Nano C100 is suitable for AI development, computer vision, machine learning, robotics, intelligent cameras, IoT, edge computing and embedded Linux applications.
Key Features
- NVIDIA Jetson Nano 4GB module
- Quad-core ARM Cortex-A57 CPU up to 1.43 GHz
- 128-core NVIDIA Maxwell GPU
- 4GB 64-bit LPDDR4 memory
- 25.6 GB/s memory bandwidth
- 16GB eMMC 5.1 onboard storage
- MicroSD card slot
- 4 × USB 3.0 Type-A ports
- USB 2.0 Micro-B port
- Gigabit Ethernet
- HDMI 2.0 and eDP 1.4
- 2 × MIPI CSI-2 camera interfaces
- M.2 Key E interface
- 40-pin expansion interface
- GPIO, I2C, I2S, SPI and UART
- 5V DC power input
- Compact 100 × 80 × 29 mm design
Technical Specifications
- Brand: OKdo
- Product Type: Development Kit
- Model: Nano C100 Developer Kit
- SKU: 252-0055
- MPN: OKdo Nano C100 Developer Kit
- GTIN-13: 5059044401255
- Processor: NVIDIA Jetson Nano
- CPU: Quad-core ARM Cortex-A57
- CPU Frequency: Up to 1.43 GHz
- GPU: 128-core NVIDIA Maxwell
- Memory: 4GB 64-bit LPDDR4
- Memory Bandwidth: 25.6 GB/s
- Storage: 16GB eMMC 5.1
- Storage Expansion: MicroSD Card
- USB: 4 × USB 3.0 Type-A + 1 × USB 2.0 Micro-B
- Ethernet: Gigabit Ethernet (10/100/1000BASE-T)
- Display: HDMI 2.0 + eDP 1.4
- Camera: 2 × MIPI CSI-2
- Expansion: GPIO, I2C, I2S, SPI, UART
- M.2: Key E
- Fan Connector: Supported
- Video Encoder: Up to 4K @ 30 fps
- Video Decoder: Up to 4K @ 60 fps
- Power Input: 5V DC
- DC Power: 5V 4A
- Micro-USB Power: 5V 2A
- Dimensions: 100 × 80 × 29 mm
- Country of Origin: China
Software Support
The OKdo Nano C100 supports the NVIDIA JetPack software ecosystem, including Linux, CUDA, cuDNN and TensorRT for AI, computer vision, deep learning, GPU computing and multimedia applications.
Applications
- Artificial Intelligence (AI)
- Machine Learning
- Edge AI
- Computer Vision
- Object Detection
- Image Processing
- Robotics
- Intelligent Camera Systems
- IoT
- Embedded Systems
- Video Analytics
- GPU-Accelerated Computing
- AI and Embedded Development

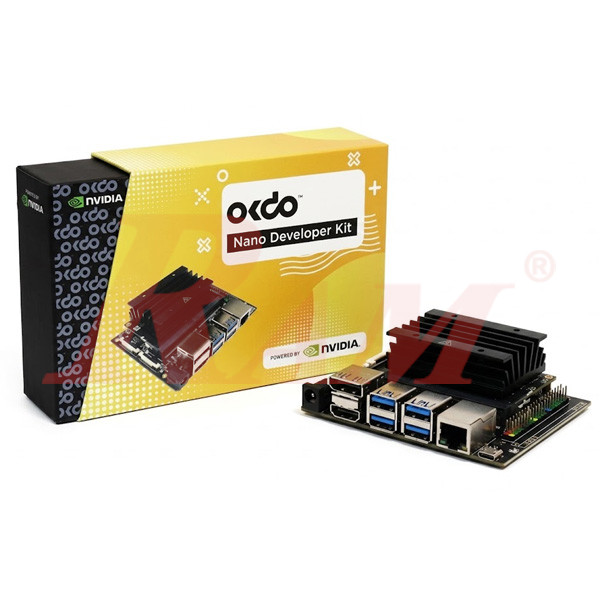

What's Included
- NVIDIA Jetson Nano module
- Radxa Nano C100 carrier board
- Quick Start Guide
- Support Guide
Not Included
- MicroSD Card
- Power Supply
A MicroSD card and suitable power supply are required to start the system and are not included with the kit.
Frequently Asked Questions
What is the OKdo Nano C100 Developer Kit?
The OKdo Nano C100 Developer Kit is an AI and embedded computing development platform powered by the NVIDIA Jetson Nano 4GB module. It is designed for AI, computer vision, robotics, IoT and embedded development.
What processor does the OKdo Nano C100 use?
The Nano C100 uses a quad-core ARM Cortex-A57 processor running at up to 1.43 GHz.
How much RAM does the Nano C100 have?
The board has 4GB of 64-bit LPDDR4 memory with a memory bandwidth of 25.6 GB/s.
How much storage does the Nano C100 have?
It includes 16GB of onboard eMMC 5.1 storage and provides a MicroSD card slot for additional storage.
Does the Nano C100 have a GPU?
Yes. It features a 128-core NVIDIA Maxwell GPU designed for GPU-accelerated computing and AI workloads.
Can the Nano C100 be used for AI and machine learning?
Yes. The NVIDIA Jetson Nano platform is designed for edge AI, computer vision, machine learning, robotics and other GPU-accelerated applications.
Does the Nano C100 support cameras?
Yes. It provides two MIPI CSI-2 camera interfaces for compatible camera modules.
How many USB ports does the Nano C100 have?
It provides four USB 3.0 Type-A ports and one USB 2.0 Micro-B port.
Does the Nano C100 have Ethernet?
Yes. It provides Gigabit Ethernet with 10/100/1000BASE-T connectivity.
Is a MicroSD card included?
No. The MicroSD card is not included.
Is a power supply included?
No. The power supply is not included. The board supports 5V power through the DC input and Micro-USB input.
