Product Name

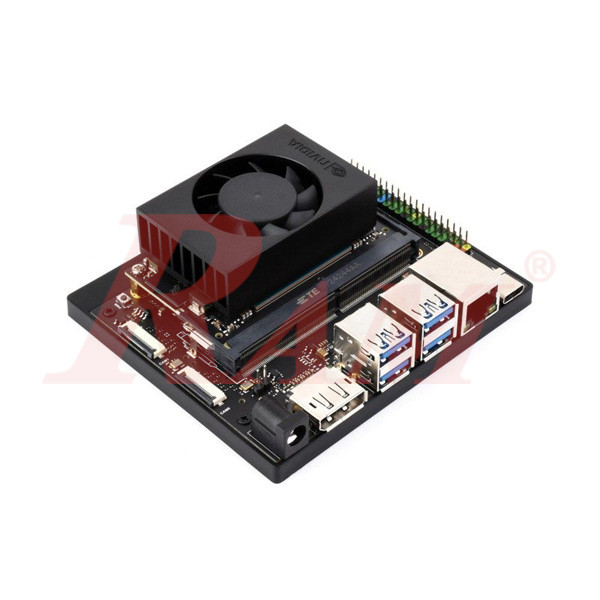

NVIDIA Jetson Orin Nano 8GB Developer Kit (P3766)
Product Code / Part Number
945-13766-0005-000
Model
P3766
Brand
NVIDIA
Product Type
AI Development Board / Edge AI Computer / Developer Kit
Full Product Description
The NVIDIA Jetson Orin Nano 8GB Developer Kit provides an accessible and powerful platform for developing modern edge-AI applications.
At the heart of the system is the Jetson Orin Nano 8GB module, featuring an NVIDIA Ampere architecture GPU with 1,024 NVIDIA CUDA Cores and 32 Tensor Cores, combined with a 6-core Arm Cortex-A78AE v8.2 64-bit CPU and 8GB of 128-bit LPDDR5 memory. The original configuration provides up to 40 INT8 TOPS of AI performance.
NVIDIA's JetPack software platform enables the same hardware to operate in Super Mode, increasing performance to up to 67 INT8 TOPS (Sparse), with GPU frequency up to 1.02 GHz, CPU frequency up to 1.7 GHz, and memory bandwidth up to 102 GB/s. NVIDIA states that previous Jetson Orin Nano Developer Kits can use the new performance mode after upgrading to the appropriate JetPack software.
The developer kit includes a reference carrier board with extensive I/O for connecting cameras, sensors, storage devices, displays, networking equipment, and robotics peripherals. It is particularly well suited for AI vision, robotics, autonomous systems, industrial automation, edge computing, and AI research and development.
Product Highlights
8GB LPDDR5 Memory
High-speed 128-bit LPDDR5 memory for demanding edge-AI workloads.
NVIDIA Ampere GPU
1,024 CUDA Cores and 32 Tensor Cores provide accelerated AI and parallel computing performance.
Up to 67 TOPS AI Performance
With NVIDIA's Super Mode, the platform can deliver up to 67 INT8 TOPS Sparse AI performance.
Extensive Connectivity
USB 3.2, Gigabit Ethernet, DisplayPort, M.2, MIPI CSI-2 and a 40-pin expansion header.
Designed for Edge AI
Ideal for robotics, computer vision, intelligent cameras, automation and generative AI.
Key Features
- NVIDIA Jetson Orin Nano 8GB module
- NVIDIA Ampere GPU architecture
- 1,024 CUDA Cores
- 32 Tensor Cores
- 6-core Arm Cortex-A78AE v8.2 64-bit CPU
- 8GB 128-bit LPDDR5 memory
- Up to 40 INT8 TOPS in the original configuration
- Up to 67 INT8 TOPS in Super Mode
- Up to 102 GB/s memory bandwidth in Super Mode
- 4 × USB 3.2 Gen 2 Type-A ports
- USB Type-C for Debug and Device Mode
- DisplayPort 1.2 with Multi-Stream Transport (MST)
- Gigabit Ethernet
- 2 × MIPI CSI-2 camera connectors
- 2 × M.2 Key M interfaces for NVMe storage
- M.2 Key E interface for wireless connectivity
- 40-pin expansion header
- microSD card slot for system storage
- 802.11ac WLAN and Bluetooth 5.0
- DC power input
- NVIDIA JetPack software ecosystem
- Designed for AI, robotics, computer vision, and edge computing
Technical Specifications
Specification | Details |
|---|---|
| Brand | NVIDIA |
| Product | Jetson Orin Nano Developer Kit |
| Model | P3766 |
| Part Number | 945-13766-0005-000 |
| Module | NVIDIA Jetson Orin Nano 8GB |
| GPU Architecture | NVIDIA Ampere |
| CUDA Cores | 1,024 |
| Tensor Cores | 32 |
| CPU | 6-core Arm Cortex-A78AE v8.2 64-bit |
| CPU Cache | 1.5 MB L2 + 4 MB L3 |
| Memory | 8GB 128-bit LPDDR5 |
| Memory Bandwidth | 68 GB/s original configuration; up to 102 GB/s in Super Mode |
| AI Performance | Up to 40 INT8 TOPS original; up to 67 INT8 TOPS in Super Mode |
| GPU Frequency | Up to 635 MHz original; up to 1.02 GHz in Super Mode |
| CPU Frequency | Up to 1.5 GHz original; up to 1.7 GHz in Super Mode |
| Module Power | 7W–15W original configuration; up to 25W in Super Mode |
| Storage | microSD and NVMe SSD |
| microSD | UHS-I, SDR104 |
| NVMe Interface | 2 × M.2 Key M |
| Wireless Interface | M.2 Key E |
| Wireless Connectivity | 802.11ac WLAN + Bluetooth 5.0 |
| USB | 4 × USB 3.2 Gen 2 Type-A |
| USB Type-C | Debug and Device Mode |
| Display Output | DisplayPort 1.2 + MST |
| Ethernet | 1 × Gigabit Ethernet |
| Camera Interface | 2 × MIPI CSI-2 22-pin connectors |
| Expansion Header | 40-pin |
| Expansion Interfaces | UART, SPI, I2S, I2C, GPIO |
| Power Input | 9–19V DC |
| Maximum Input Current | 5A |
| Dimensions | 100 × 79 × 21 mm |
| Operating System / Software | NVIDIA JetPack / Jetson Linux |
| Manufacturer | NVIDIA Corporation |
| Country of Manufacture | China |
The core hardware specifications and carrier-board interfaces are documented by NVIDIA.
Connectivity & I/O
USB
4 × USB 3.2 Gen 2 Type-A
The high-speed USB ports can be used for peripherals such as keyboards, mice, cameras, storage devices, development equipment, and other USB accessories.
1 × USB Type-C
Used for Debug and Device Mode.
Display
DisplayPort 1.2
Supports DisplayPort output and Multi-Stream Transport (MST).
Networking
Gigabit Ethernet
1 × 10/100/1000 BASE-T Gigabit Ethernet
Provides wired network connectivity for development, remote access, edge computing, and networked applications.
Wireless
The developer kit provides wireless connectivity through its M.2 Key E interface and wireless networking module, supporting:
- 802.11ac WLAN
- Bluetooth 5.0
NVIDIA's developer-kit documentation lists the included wireless networking module and M.2 Key E interface.
Camera Interfaces
The carrier board provides:
2 × MIPI CSI-2 22-pin camera connectors
These interfaces allow connection of compatible MIPI CSI-2 camera modules for applications such as:
- Computer vision
- Object detection
- Image recognition
- AI surveillance
- Robotics vision
- Industrial inspection
- Autonomous systems
- Multi-camera applications
Storage
The Jetson Orin Nano Developer Kit provides two main storage options:
microSD Card
The system can boot from a microSD card through the onboard UHS-I microSD slot.
microSD card is required but not included.
NVMe Storage
The carrier board provides 2 × M.2 Key M connectors for high-speed NVMe storage. NVIDIA documents these as PCIe Gen3 interfaces.
40-Pin Expansion Header
The 40-pin expansion header provides access to multiple interfaces for hardware development and external peripherals, including:
- GPIO
- UART
- SPI
- I2C
- I2S
The header can be used with sensors, displays, motor controllers, robotics peripherals, expansion boards, and custom electronics.
AI Performance
Original Jetson Orin Nano Configuration
- Up to 40 INT8 TOPS Sparse
- 20 INT8 TOPS Dense
- 10 FP16 TFLOPS
- 1,024 CUDA Cores
- 32 Tensor Cores
- 635 MHz GPU frequency
- 1.5 GHz CPU frequency
- 68 GB/s memory bandwidth
Jetson Orin Nano Super Mode
With the appropriate NVIDIA JetPack software, the same developer-kit hardware can operate in Super Mode:
- Up to 67 INT8 TOPS Sparse
- 33 INT8 TOPS Dense
- 17 FP16 TFLOPS
- 1,024 CUDA Cores
- 32 Tensor Cores
- Up to 1.02 GHz GPU frequency
- Up to 1.7 GHz CPU frequency
- Up to 102 GB/s memory bandwidth
- Up to 25W module power
NVIDIA describes the Super Mode as a software-enabled performance boost using the same hardware architecture.
Software & AI Ecosystem
The Jetson Orin Nano platform is supported by NVIDIA's JetPack ecosystem, providing the software stack required for AI and embedded development.
Compatible technologies and frameworks include:
- NVIDIA CUDA
- NVIDIA cuDNN
- NVIDIA TensorRT
- NVIDIA DeepStream
- NVIDIA Isaac
- NVIDIA JetPack SDK
- Jetson Linux
- TensorFlow
- PyTorch
- Hugging Face Transformers
- Ollama
- llama.cpp
- vLLM
- MLC
- NVIDIA TensorRT-LLM
NVIDIA specifically highlights support for modern AI and generative-AI frameworks and optimized inference infrastructure on Jetson platforms.
Applications
The NVIDIA Jetson Orin Nano Developer Kit is ideal for:
- Artificial Intelligence
- Machine Learning
- Edge AI
- Computer Vision
- Robotics
- Autonomous Robots
- Intelligent Cameras
- Video Analytics
- Industrial Automation
- Smart Manufacturing
- Drones
- AIoT
- Embedded AI
- Deep Learning
- Generative AI
- Large Language Models
- Vision-Language Models
- Image Recognition
- Object Detection
- Object Tracking
- Research & Development
- Education
- AI Prototyping
Recommended Use Cases
Robotics
Develop autonomous robots, navigation systems, robotic vision, sensor-processing platforms, and AI-powered robotic applications.
Computer Vision
Process camera data locally for object detection, classification, tracking, segmentation, image recognition, and inspection.
Generative AI
Run compatible local AI models and develop applications based on LLMs, VLMs, and Vision Transformers.
Smart Cameras
Build intelligent camera systems capable of analyzing video streams directly at the edge without relying entirely on cloud processing.
Industrial AI
Use the Jetson platform for machine vision, industrial inspection, automation, monitoring, and intelligent control systems.

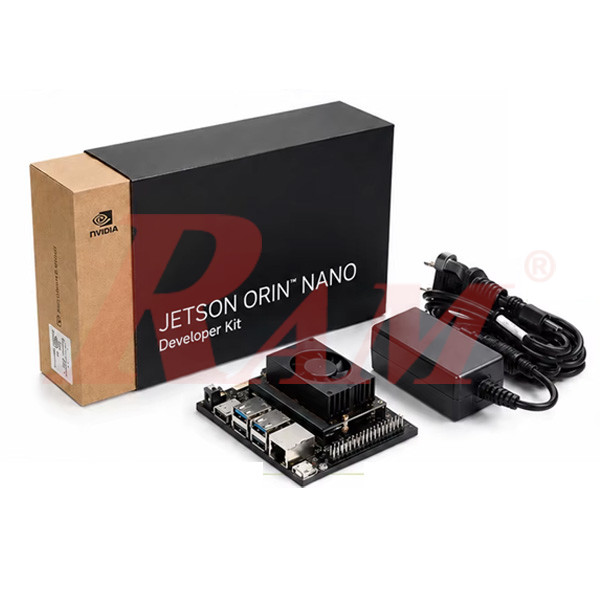

What's Included
- NVIDIA Jetson Orin Nano 8GB module
- NVIDIA reference carrier board
- Preassembled heatsink and fan
- Wireless networking module
- DC power supply
- Quick-start / support documentation
Required but Not Included
microSD Card
A compatible microSD card is required to boot and install the operating system/software environment.
Also required for normal development but not included:
- Display
- Keyboard
- Mouse
- Network connection, when required
- Camera modules and other peripherals
Power Requirements
Input Voltage: 9–19V DC
Maximum Input Current: 5A
The exact box for your unit shows:
Input: 9–19V ⎓ 5A MAX
The NVIDIA developer-kit documentation specifies a 19V DC power supply for the original developer kit.
Dimensions
100 × 79 × 21 mm
The stated height includes the carrier board, module, thermal solution, and feet.
Product Identification
- Brand: NVIDIA
- Model: P3766
- Product: Jetson Orin Nano Developer Kit
- Part Number: 945-13766-0005-000
- Memory: 8GB LPDDR5
- GPU: NVIDIA Ampere, 1,024 CUDA Cores, 32 Tensor Cores
