NOYAFA® NF-8209 Advanced Network Cable Tester with Tone Tracer

https://www.ram-e-shop.com/web/image/product.template/9111/image_1920?unique=d2b9188 NF8209.NOYAFA

2,950.00 EGP 2950.0 EGP 2,950.00 EGP

2,950.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: NF8209.NOYAFA

NOYAFA NF-8209 Network Cable Tester


Product Description

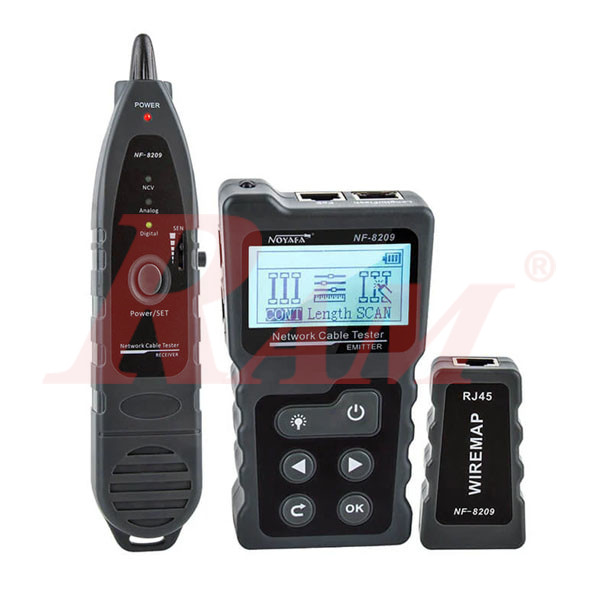

The NOYAFA NF-8209 Network Cable Tester is a multifunction tool designed for testing, tracing, and troubleshooting Ethernet network cables. It combines cable continuity testing, wire mapping, cable length measurement, cable tracing, PoE testing, and network port identification in one practical kit.

The device supports CAT5 and CAT6 STP/UTP cables. Its continuity testing function identifies common wiring problems, including open circuits, short circuits, and crossed wires. The cable length measurement function measures network cables and helps identify the approximate location of cable breaks.

For cable tracing, the NF-8209 offers Digital, Analog, and PoE scanning modes, allowing technicians to locate target cables in different installation environments. It also supports PoE voltage and power supply mode detection, while the Port Flash function helps identify the connected port on a network switch or router.

The receiver includes non-contact AC voltage detection (NCV) and a built-in flashlight for additional convenience during installation and maintenance.

The NOYAFA NF-8209 is suitable for network technicians, installers, and maintenance professionals working with Ethernet cabling and network infrastructure.

Key Features

  • Multifunction Network Cable Tester: Combines wire mapping, cable tracing, length measurement, PoE testing, and Port Flash.
  • CAT5 / CAT6 Compatibility: Supports STP and UTP network cables.
  • Continuity and Wire Mapping: Identifies normal connections, open circuits, short circuits, and crossed wires.
  • Cable Length Measurement: Measures network cable lengths from 2.5m to 200m.
  • Cable Fault Location: Helps identify the approximate distance to cable breaks.
  • Three Cable Scanning Modes: Digital, Analog, and PoE modes for locating target cables.
  • Long-Distance Cable Tracing: Maximum scanning range up to 600m according to the specifications.
  • PoE Testing: Detects PoE voltage, power supply polarity, and power supply mode.
  • PoE Standard Identification: Supports IEEE 802.3af/at standard PoE testing and non-standard PoE voltage detection.
  • Port Flash: Identifies the connected network port through its flashing indicator on a switch or router.
  • NCV Detection: Detects the presence of AC voltage without direct contact.
  • Built-in Flashlight: Helps technicians work in dark or poorly illuminated areas.
  • Backlit LCD Display: Displays cable test results and measurement information.
  • Adjustable Settings: Includes display backlight, automatic shutdown time, language, and contrast settings.

Technical Specifications

General Specifications

ParameterSpecification
BrandNOYAFA
ModelNF-8209
Product TypeNetwork Cable Tester and Tracer
Supported Cable TypesCAT5 / CAT6
Cable CompatibilitySTP / UTP
Main FunctionsWire Mapping, Cable Tracing, Length Measurement, PoE, Port Flash
Voltage ProtectionDC 48V / 5mA

Cable Testing and Measurement

ParameterSpecification
Wire MappingSupported
Cable Fault DetectionOpen Circuit / Short Circuit / Crossed Wires
Cable Length Measurement Range2.5–200m
Cable Length Accuracy±1.6m
Cable Break LocationSupported
Cable Scanning ModesDigital / Analog / PoE
Scanning Frequency455kHz
Maximum Scanning Range600m
Maximum Signal Voltage9 ± 1Vp-p
Receiver SensitivityAdjustable

PoE Testing

ParameterSpecification
PoE Voltage RangeDC 5–60V
Standard PoEIEEE 802.3af / 802.3at
Non-Standard PoE TestingSupported
Voltage DisplaySupported
Power Supply Polarity DetectionSupported
Power Supply Mode DetectionSupported

Display and Power Supply

ParameterTransmitterReceiver
Display128 × 64 Dot-Matrix LCD with BacklightLED Indicators
Battery Type3 × AAA Batteries1 × 9V Battery
Battery IncludedNoNo
Low Battery Warning2.7V6 ± 0.5V
Maximum Working CurrentLess than 150mALess than 100mA
Automatic Shutdown15 / 30 / 60 minutes / OFF—
AC Voltage Detection—Supported
Built-in Lamp—Supported

Remote Identifier

ParameterSpecification
Connection PortRJ45
Voltage ProtectionDC 48V / 5mA

Applications

  • Network Installation: Testing CAT5 and CAT6 Ethernet cables during network installation.
  • Cable Troubleshooting: Identifying open circuits, short circuits, and crossed wiring.
  • Cable Length Measurement: Measuring network cable lengths and locating approximate break positions.
  • Cable Tracing: Finding specific network cables in bundles, cabinets, and building installations.
  • PoE Network Maintenance: Checking PoE voltage, polarity, and power supply mode.
  • Network Port Identification: Locating connected ports on switches and routers using Port Flash.
  • Electrical Maintenance: Detecting the presence of AC voltage using the receiver's NCV function.
  • Telecommunication and IT Maintenance: Supporting technicians working with network cabling and communication infrastructure.

Package Contents

According to the NF-8209 user manual:

ItemQuantity
Transmitter / Emitter1
Receiver1
Remote Identifier1
Cable Adapter1
Carrying Bag1
User Manual1

Frequently Asked Questions (FAQ)

1. What is the NOYAFA NF-8209 used for?

The NF-8209 is a network cable tester designed for wire mapping, continuity testing, cable tracing, cable length measurement, PoE testing, and network port identification.

2. Which network cables does the NF-8209 support?

It supports CAT5 and CAT6 STP/UTP Ethernet cables.

3. Can the NF-8209 detect cable faults?

Yes. It can identify open circuits, short circuits, and crossed wires. Its length measurement function can also help locate the approximate distance to a cable break.

4. What is the cable length measurement range?

The specified measurement range is 2.5m to 200m, with an accuracy of ±1.6m.

5. What is the maximum cable tracing distance?

The specifications state a maximum scanning range of up to 600m. Actual tracing distance depends on cable type, installation conditions, interference, and receiver sensitivity.

6. Does the NF-8209 support PoE testing?

Yes. It detects PoE voltage, power supply polarity, and power supply mode. It supports standard IEEE 802.3af/at PoE testing and non-standard PoE voltage detection.

7. What is the Port Flash function?

Port Flash helps identify the connected Ethernet port on a network switch or router. The corresponding port indicator flashes, allowing technicians to locate the correct connection.
