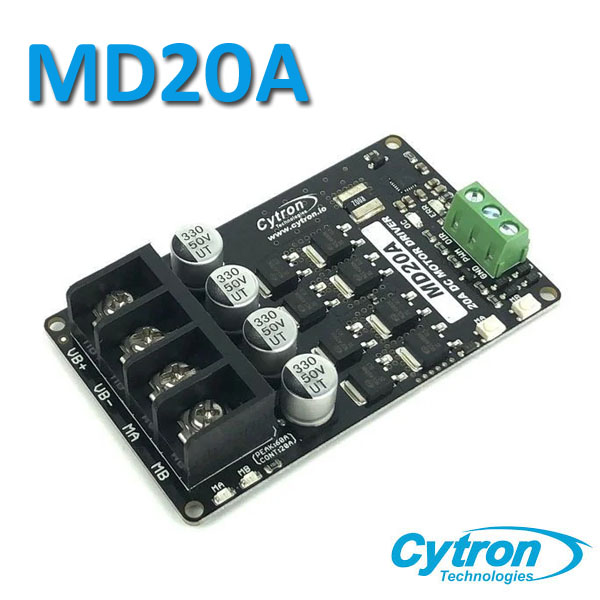

MD20A Cytron 20Amp 6V-30V DC Motor Driver (1 Channel)
Drive 1 Motor
Internal Reference:
MD20A.CYTRON
Important Note:
No Reverse Polarity Protection, please double-check the polarity before powering up.
Introduction
The MD20A enables bidirectional control of one high-power brushed DC motor from 6V to 30V. With discrete NMOS H-Bridge design, this motor driver is able to support 20Amp continuously without any heatsink. The onboard test buttons and motor output LEDs allow functional test of the motor driver in a quick and convenient way without hooking up the host controller. This motor driver can be controlled with PWM and DIR inputs. With input logic voltage range from 1.8V to 12V, it’s compatible with wide variety of host controller (e.g. Arduino, Raspberry Pi, PLC).
Various protection features are also incorporated in the MD20A. Overcurrent protection prevents the motor driver from damage when the motor stalls or an oversized motor is hooked up. When the motor is trying to draw current more than what the motor driver can support, the motor current will be limited at the maximum threshold. Assisted by temperature protection, the maximum current limiting threshold is determined by the board temperature. The higher the board temperature, the lower the current limiting threshold. This way, MD20A able to deliver its full potential depending on the actual condition without damaging the MOSFETs.
Features
- Bidirectional control for one brushed DC motor.
- Operating Voltage: DC 6V to 30V
- Maximum Motor Current: 20A continuous, 60A peak
- Buttons for quick testing.
- LEDs for motor output state.
- PWM and DIR inputs.
- Inputs compatible with 1.8V, 3.3V, 5V and 12V logic (Arduino, Raspberry Pi, PLC, etc).
- PWM frequency up to 20kHz (Output frequency is same as input frequency).
- Compatible with sign-magnitude and locked-antiphase PWM operation.
- Overcurrent protection with active current limiting.
- Temperature protection.
- Undervoltage shutdown.
