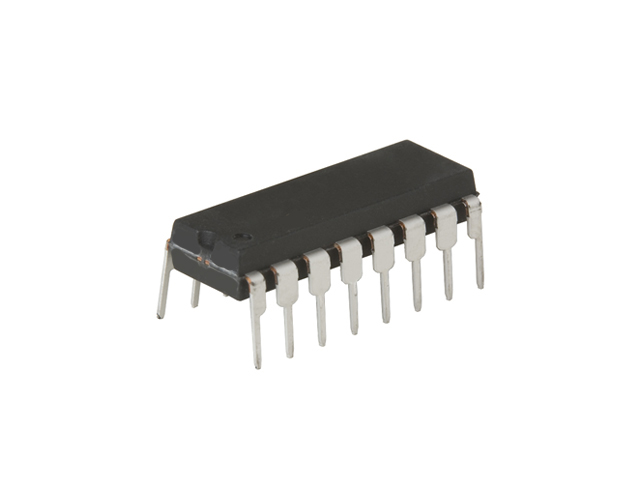

MAX232CPE
+5V Powered Multi-channel RS232 Transceiver
Internal Reference:
MAX232CPE
The MAX232 is an RS232 Transceiver, which operates from a single +5V supply and includes an integrated charge pump for operation at RS-232 voltage levels. The MAX232 includes two RS-232 receivers and two RS-232 drivers. The MAX232 is suitable for data rates up to 120kbits/second and requires only 4 external capacitors for operation.
Features
- Superior to Bipolar
- 120kbits/sec Data Rate
- Requires only 4 external capacitors
- Designed for RS232 and V.28 Applications
- Three State TTL/CMOS Receiver Outputs
