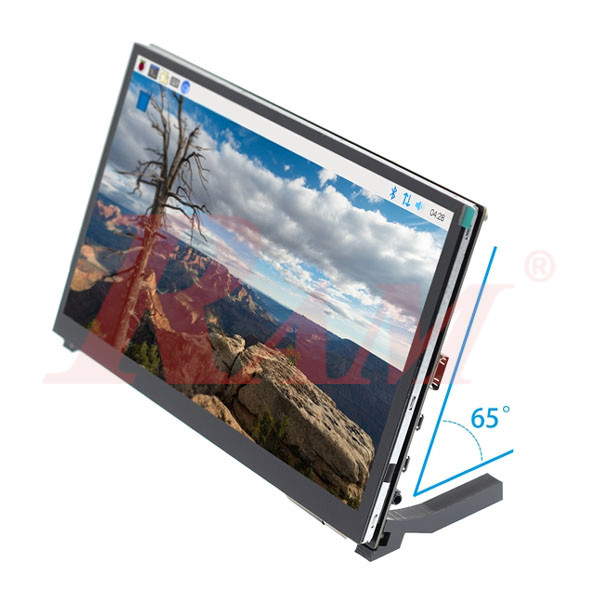

The LCD HDMI 10 inch 1024x600 touch screen with audio speakers is a 10.1 inch IPS screen with a capacitive touch panel, stereo dual speakers and a 3.5mm audio interface. It works with Raspberry Pi, Banana Pi, BB Black and other development boards, with a computer, and as a monitor for game consoles such as Xbox360, PS4 and Switch.
LCD HDMI 10 Inch 1024x600 Touch Screen With Audio Speakers: Product Feature
- IPS full Angle display
- The viewing angle is large
- True color
- Dynamic picture quality is excellent
- Energy saving and environmental protection
- 1024X600 HD vision
- Resolution for HD 1024X600 dot matrix
- It is more delicate than 800X480 ordinary screen
- Tempered glass touch panel
- Hardness up to 6H, more durable and more scratch-resistant
- External audio output interface
- Stereo dual speaker output shock sound
- 3.5mm external audio interface
- Used as a games monitor
- Support Xbox360, PS4, Switch etc
- Used as a mini PC monitor
- Support Raspberry Pi, Banana Pi, BB Black and other mainstream development board
- Support Raspbian, Kali Linux, Ubuntu and other mainstream systems, single touch plug and play without driver.
- Used as a computer display
- Support win10/win8/win7 system, support five-point touch plug and play driver
10 Inch HDMI Touch Screen for Raspberry Pi, PC and Game Consoles
As a 10 inch HDMI touch screen, this display connects to any HDMI source, so you can use it as the screen for a Raspberry Pi project, as a computer display, or as a monitor for a game console. If you are choosing a board for it, see the Raspberry Pi 5 4GB or browse all Raspberry Pi boards.
10.1 Inch IPS HDMI Monitor: Product Specifications
- Screen Type: IPS screen
- Screen Size: 10.1 inch
- Resolution: 1024 x 600
- Backlight Adjustment: Switching and adjusting via dial switch
- Volume Adjustment: Switching and adjusting via dial switch
- Touch Screen Type: Capacitive Touch Screen (Plug & Play Driver for Windows & Linux)
- Touch IC: GT9271
- Power Supply: MicroUSB (5V)
- Speakers Power: 8Ω 2W
- Overall Power Consumption:
- 0.7W (0% brightness, 0% volume)
- 3.8W (100% brightness, 0% volume)
- 4.8W (100% brightness, 100% volume)
- Video Input Interface: HDMI
- Audio Output Interface: 3.5mm Audio Interface + Stereo dual speaker output
- Module Size (L x W x H): 236.00 × 145.57 × (20.00 ± 0.2) mm
- Packaging Size (L x W x H): 295 × 195 × 70 mm
- Product Weight (including package): 900g
HDMI Monitor With Speakers: Choosing the Right Display
If you need a smaller screen, see the LCD HDMI 7 inch 1024x600 capacitive touch screen or the LCD HDMI 7 inch 800x480 capacitive touch screen, or browse all LCD modules.
Frequently Asked Questions
What is the resolution of the 10 inch HDMI LCD?
The resolution is 1024 x 600 on a 10.1 inch IPS screen.
Does it have built-in speakers?
Yes. It has a stereo dual speaker output (8Ω 2W) and a 3.5mm external audio interface.
Is it compatible with Raspberry Pi?
Yes. It supports Raspberry Pi, Banana Pi, BB Black and other mainstream development boards, with Raspbian, Kali Linux, Ubuntu and other mainstream systems. Single touch works plug and play without a driver.
Can I use it as a game monitor?
Yes. It supports Xbox360, PS4, Switch etc.
Can I use it with a computer?
Yes. It supports win10, win8 and win7, with five-point touch plug and play driver.
How is the display powered?
The power supply is MicroUSB (5V). The overall power consumption is 0.7W (0% brightness, 0% volume), 3.8W (100% brightness, 0% volume) and 4.8W (100% brightness, 100% volume).
How do I adjust the backlight and the volume?
Both are switched and adjusted via a dial switch.
The LCD HDMI 10 inch 1024x600 touch screen with audio speakers combines a 10.1 inch IPS display, a 6H tempered glass touch panel and built-in stereo speakers for Raspberry Pi, computers and game consoles. If you are building a touch interface for your engineering graduation projects this term, RAM Electronics offers the LCD HDMI 10 inch 1024x600 touch screen with audio speakers in Egypt along with other LCD modules. Contact us if you need help choosing the right display for your project.
