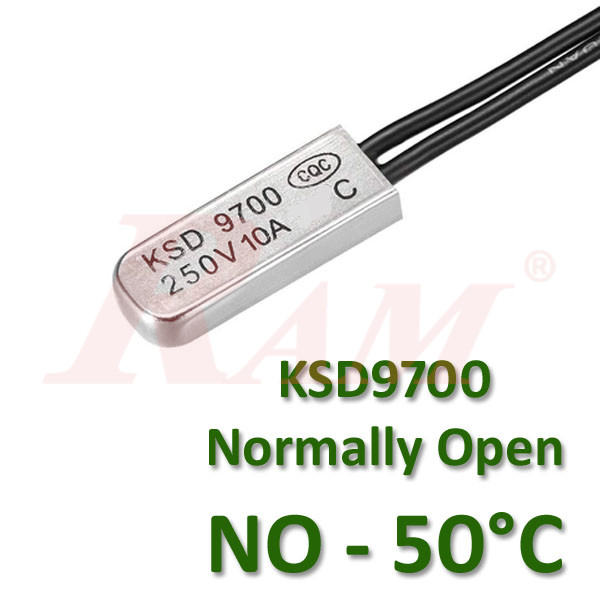

KSD9700 Normally Open (NO) Thermal Switch
Metallic Shell Temperature Control Switch
250Vac 10A
Overview:
Bimetal temperature control switch with automatic reset. In default state, the contacts are open. The switch closes to allow current flow when the temperature reaches the preset value and opens again after cooling below reset temperature. Ideal for temperature-activated control and protection.
Available Temperature Options:
- 50°C ±5°C (Resets at ≥35°C)
- 70°C ±5°C (Resets at ≥50°C)
- 130°C ±5°C (Resets at ≥90°C)
Specifications:
- Type: Normally Open (NO)
- Voltage Rating: 250V AC
- Current Rating: 10A max (resistive load)
- Contact Resistance: ≤50 mΩ
- Insulation Resistance: ≥100 MΩ (DC 500V)
- Dielectric Strength: 1250V AC / 1 min
- Housing Material: Metal
- Lead Wire Length: ~70mm
- Dimensions: 20 × 7.5 × 3.8 mm
- Life Expectancy: ≥10,000 cycles
- Mounting: Surface contact (screw or adhesive)
Applications:
Temperature-controlled circuits, alarms, fans, heaters, motors, appliances, and more.
