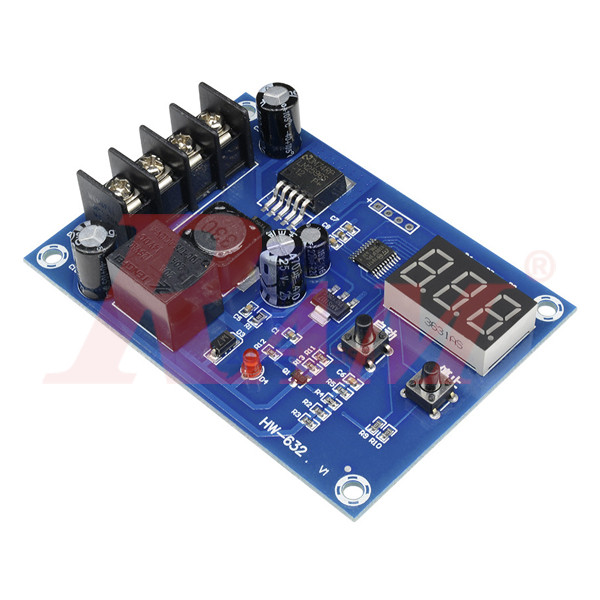

XH-M603 Digital LED Display Battery Charger Control Switch Protection Board Module - For 12/24Vdc Battery

Description

XH-M603 Charging Control Module for 12-24V Batteries Charger Control with Protection.

Feature

• Model: XH-M603
• Input Voltage: DC 10-30V
• Display Precision: 0.1V
• Control Precision: 0.1V
• Output Type: DC
• Voltage Tolerance: +/-0.1V
• Automatic control circuit connection
• Automatic charging and power off once battery full
• Real-time voltage monitor
• Autosave setting
• ST core chip
• LM2596 switch voltage regulator
• Application Fields: 12-24V rechargeable battery
• Applicable to solar cells, new energy batteries, Lead-acid batteries, nickel-cadmium batteries, nickel-metal hydride batteries, lithium-ion batteries, polymer batteries, Car batteries, and electric car batteries.
• Size: 82*58*18mm

Using method:

1. Set Starting Voltage: in normal display voltage state, press the button will display start charging voltage; long press for 3s the digital tube will flash: you can start or stop button to set starting up charge voltage value.
2. Set Stop Voltage: in normal display voltage state, press the button will display stopping charge voltage; long press the button for 3s the digital tube will flash; you can start or stop button to set stopping charge voltage value.
3. Factory Reset: in power on state press the start/stop button at the same time,digital tube will display 888; which represents factory reset settings.

Note: Need to be connected to a battery, to get an output on the display.

Comparison chart for the three models we offer from this charger board series:
