XH-M603 Digital LED Display Battery Charger Control Switch Protection Board Module - For 12/24Vdc Battery

Input Voltage: DC 10-30V

This combination does not exist.

Pick up from RAM Store
Shipping: 2-3 Business Days

Internal Reference: KIT.XH.M603

Description

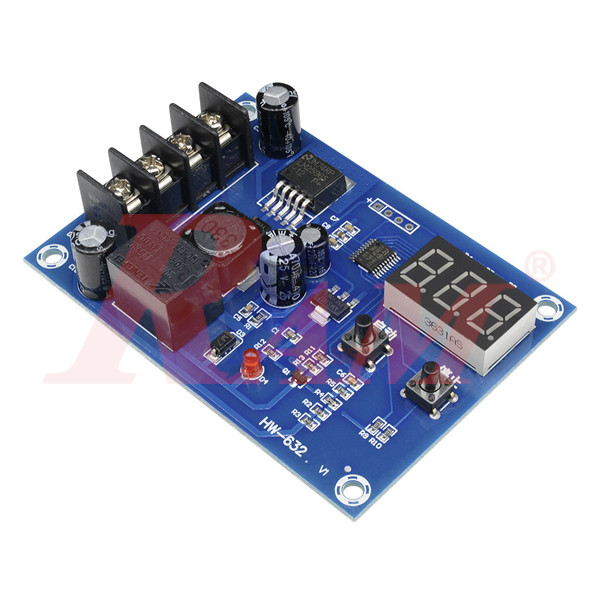

XH-M603 Charging Control Module for 12-24V Batteries Charger Control with Protection.

Feature

Model: XH-M603
Input Voltage: DC 10-30V
Display Precision: 0.1V
Control Precision: 0.1V
Output Type: DC
Voltage Tolerance: +/-0.1V
Automatic control circuit connection
Automatic charging and power off once battery full
Real-time voltage monitor
Autosave setting
ST core chip
LM2596 switch voltage regulator
Application Fields: 12-24V rechargeable battery
Applicable to solar cells, new energy batteries, Lead-acid batteries, nickel-cadmium batteries, nickel-metal hydride batteries, lithium-ion batteries, polymer batteries, Car batteries, and electric car batteries.
Size: 82*58*18mm

Using method:

Set Starting Voltage: in normal display voltage state, press the button will display start charging voltage; long press for 3s the digital tube will flash: you can start or stop button to set starting up charge voltage value.
Set Stop Voltage: in normal display voltage state, press the button will display stopping charge voltage; long press the button for 3s the digital tube will flash; you can start or stop button to set stopping charge voltage value.
Factory Reset: in power on state press the start/stop button at the same time,digital tube will display 888; which represents factory reset settings.

Note: Need to be connected to a battery, to get an output on the display.
