Product Overview
The W5500 chip is a hardwired TCP/IP embedded Ethernet controller that simplifies Internet connectivity for embedded systems. It integrates a full TCP/IP stack, 10/100 Ethernet MAC, and PHY in a single chip. With this module, users can add Ethernet capabilities to their microcontroller-based projects with minimal development effort.

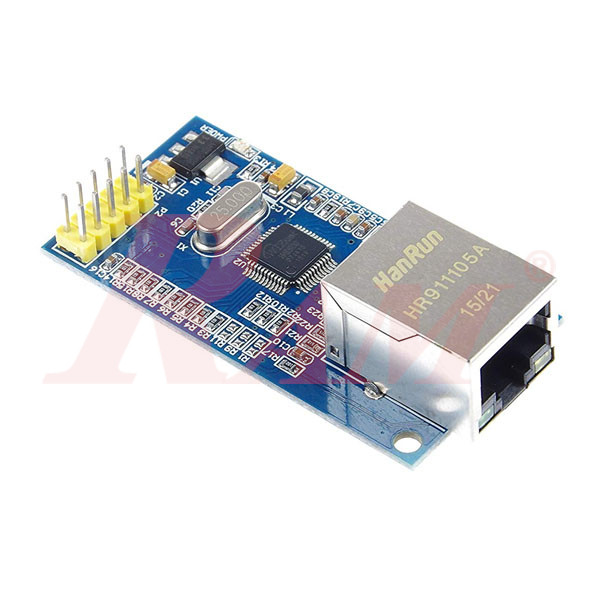

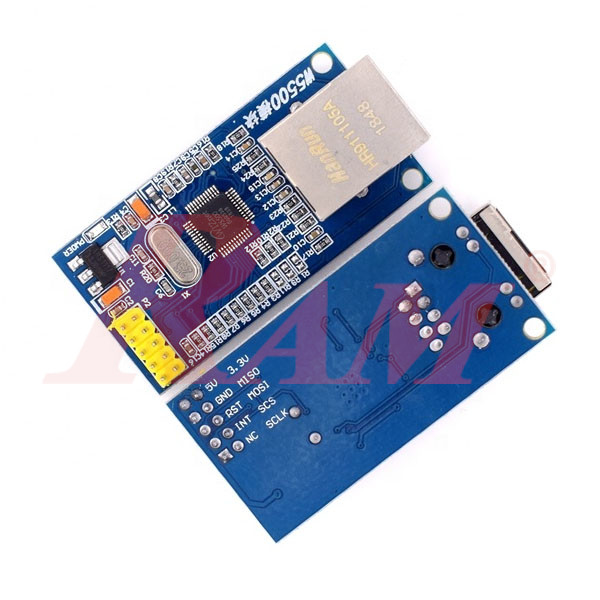

This module is based on the WIZnet W5500 chip and includes an integrated hardware TCP/IP stack. It supports 10/100 Mbps transmission rates, includes a 32KB buffer for Tx/Rx, and provides sleep mode and Wake-on-LAN functionality.
Technical Specifications
- Chipset: W5500
- Input Voltage: 3.3V to 5V
- Data Interface: SPI (supports SPI mode 0 and 3, up to 80 MHz)
- Embedded Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- Built-in Memory: 32 KB for Tx/Rx buffer
- Sockets: Supports up to 8 independent simultaneous sockets
- Ethernet Standards: 10Base-T / 100Base-TX
- Power-saving Features: Power down mode, Wake-on-LAN
- Full/Half Duplex Support: Auto negotiation supported
-
Dimensions:
- Length: 60 mm
- Width: 28 mm
- Height: 17 mm
Key Features
- Compatible with both 3.3V and 5V systems
- Built-in Ethernet PHY
- Hardwired protocol handling offloads tasks from the MCU
- 8 hardware sockets for concurrent connections
- Integrated 32KB memory buffer
- Supports full and half duplex Ethernet communication
- Power down and Wake-on-LAN support
- 5V-tolerant I/O for flexible integration
- SPI interface ensures easy communication with most microcontrollers (e.g., STM32, ATmega, 8051)
- Ready-to-use client/server/UDP libraries and examples available
Applications
- Home Network Devices: Set-top boxes, digital media adapters
- Serial-to-Ethernet: Access control, LED displays, wireless AP relays
- Parallel-to-Ethernet: POS systems, mini printers, copiers
- USB-to-Ethernet: Network printers, storage devices
- GPIO-to-Ethernet: Smart home sensors and controls
- Security Systems: DVRs, IP cameras, kiosks
- Industrial Automation
- Embedded Web Servers
- Medical Monitoring Equipment
