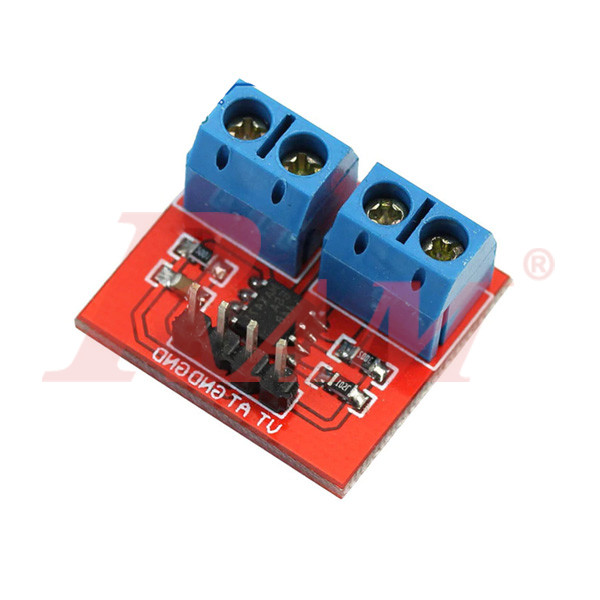

MAX471 Voltage And Current Sensor Module

https://ram-electronics.odoo.com/web/image/product.template/7764/image_1920?unique=1c0fd9f

Consume Voltage Load Detection Module

200.00 EGP 200.0 EGP 200.00 EGP

200.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.VS.CS

Description

This module can be used to test the current and voltage. The principle of voltage test based on the principle of resistive voltage divider design can make the red terminal connector input voltage 5 times smaller for Arduino analog input voltages up to 5V, the voltage detection module input voltage not greater than 5Vx5=25V (if using 3.3V systems, input voltage not greater than 3.3Vx5=16.5V). For Arduino AVR chips have 10-bit AD, so this module simulates a resolution of 0.00489V (5V/1023), so the minimum voltage of input voltage detection module is 0.00489Vx5=0.02445V The MAX471 chip on the board used to test the consumed current of the load.

Parameters:

  • Test Voltage range: DC3 – 25V (For Arduino work on 5V) or  DC3 – 16.5V (for Arduino work on 3.3V)
  • Test Current range: DC0 – 3A
  • PCB Size: 22 * 21 * 7 mm

Applications

  • Smart Battery Packs
  • Portable Phones
  • Portable Test/Measurement Systems
  • Battery-Operated Systems

Download

MAX471 IC Datasheet
