USB Male Connector USB Male to Micro Type-c Female XY-USB4
Description:

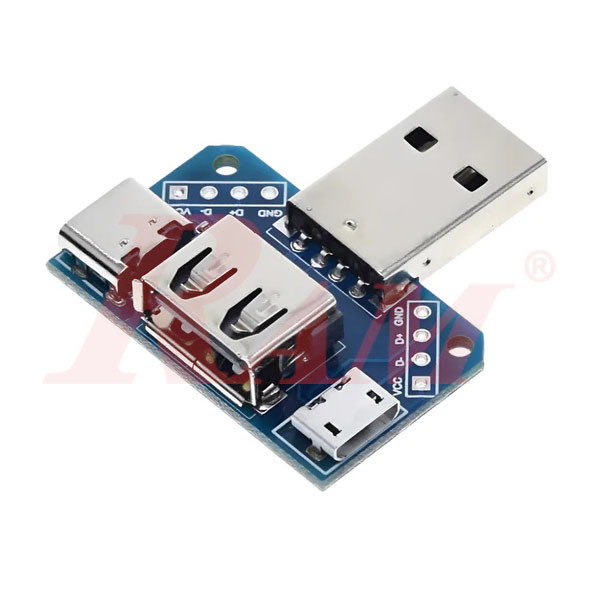

A versatile USB interface module featuring five connection options—including USB Type-A (male & female), Micro-USB (female), USB-C (female), and a 4-pin 2.54 mm header (VCC, D–, D+, GND)—enabling flexible data or power routing in DIY electronics and prototyping.
Features:

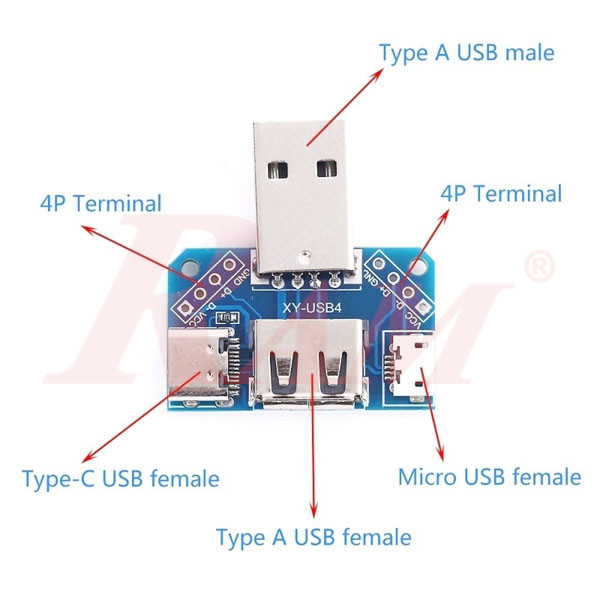

- Supports five interfaces: USB Type-A male, USB Type-A female, Micro-USB female, USB-C female, and 4-pin 2.54 mm header
- Works as both a voltage interface converter and a data interface converter
- Ideal for development, prototyping, and interfacing between older USB-A and newer Micro-USB or USB-C devices
Technical Specifications:
- Operating Voltage: 5 V DC
- Operating Temperature: –20 °C to +85 °C
- Operating Humidity: 0 % to 95 % RH
- Dimensions: ~36 mm (L) × 33 mm (W) × 10 mm (H)
- Weight: ~6–10 g
- Header Pin Assignment: 4-pin 2.54 mm grid (VCC, D–, D+, GND)
Use Cases:
- Rapid interface switching between USB-A, USB-C, and Micro-USB
- Integrating USB signals into circuit boards via the 4-pin header
- Power and data connections in embedded systems and robotic projects
