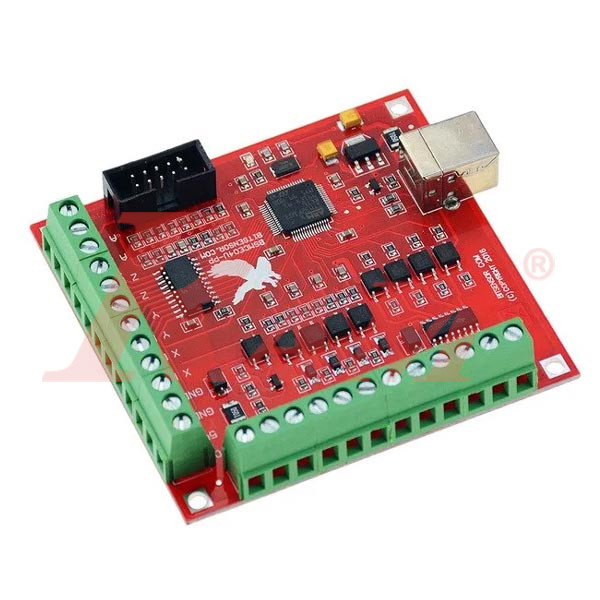

CNC USB MACH3 100Khz Breakout Board 4 Axis Interface Driver Motion Controller
Description:
- Support for 4-axis linkage, you can connect four stepper motor drives or servo drives.
- The maximum step-pulse frequency is 100KHz, which is suitable for the servo or stepping motor.
- Support automatic probe tool.
- Support Emergency input.
- Support four-limit switch.
- Support for connecting electronic handwheel.
- Need to use an external 24V DC power supply to isolate USB and external ports, and to make the system more stable.
- Having a 0~10V output port, you can use mach3 software to control the spindle motor speed.
- 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero, and other devices.
- 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating pumps and other devices.
- 1 status LED, indicates connection status on the board.
- Size: 8x7.7cm
