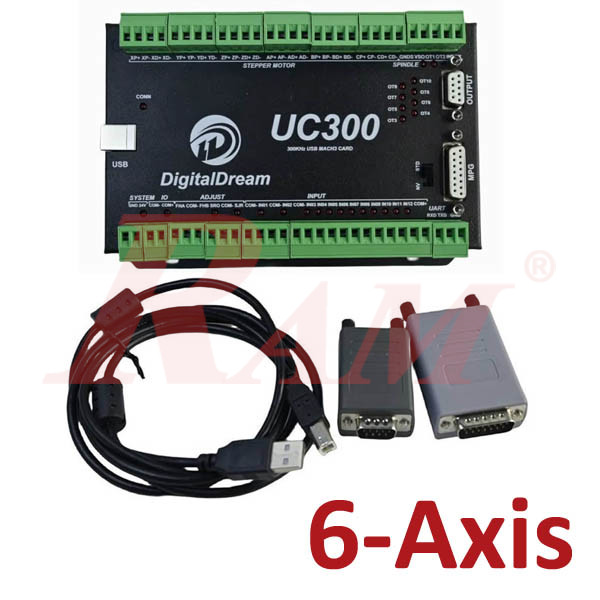

UC300 MACH3 USB 6-Axis CNC Controller

6-Axis USB Motion Controller Board (UC300-6 Axis)

Product Description

The UC300 6-Axis USB Motion Controller by Digital Dream is a high-spec external CNC motion control solution designed for complex multi-axis machinery operating on Mach3 software. Featuring high-speed USB connectivity, it drives up to 6 full axes (X, Y, Z, A, B, C) with individual pulse and direction signals up to 300 kHz per axis. Equipped with robust dual-power isolation, VFD analog speed output, 12 inputs, 10 outputs, and full MPG/pendant support, the UC300-6 Axis offers high reliability for 5/6-axis machining centers, dual-gantry setups, and advanced automation.

Key Features

• Full 6-Axis Simultaneous Control: Drives up to 6 axes (X, Y, Z, A, B, C) simultaneously for complex multi-axis CNC setups.
• 300 kHz High Stepping Frequency: Delivers high-frequency step outputs (up to 300 kHz/axis) for high-resolution stepper and servo motor systems.
• Industrial Opto-Isolation: Photoelectric isolation between host PC communication and motor/IO control sectors prevents ground loop noise and interference.
• Integrated Spindle Speed Control: 0–10V VFD speed control output (PWM configurable) along with spindle speed feedback (INDEX) input.
• Comprehensive I/O Setup: 12 opto-isolated digital inputs and 10 opto-isolated outputs (DB9 connector with built-in relay driver IC).
• Selectable MPG Handwheel Modes: Onboard hardware switch allows instant compatibility with Standard MPGs or Digital Dream NVMPG handwheels.
• Potentiometer Override Interface: Hardware terminals for direct adjustment of Feed Rate Override (FRO), Spindle Speed Override (SRO), and Jogging Rate (SJR).
• Serial Extension Port (UART): Allows future expansions such as external HMI modules or extra IO boards.

Product Specifications

• Manufacturer: Digital Dream CNC Co., Ltd.
• Model: UC300 (6-Axis Configuration)
• Software Compatibility: Mach3 (via dedicated DigitalDream USB plugin)
• Controllable Axes: 6 Axes (X, Y, Z, A, B, C)
• Max Pulse Frequency: 300 kHz per axis
• Main Power Input: 24VDC (Current > 1A)
• IO Power Input: 24VDC (Current > 1A)
• Digital Inputs: 12 opto-isolated channels (Compatible with NPN Proximity sensors, Limit switches, Tool setters)
• Digital Outputs: 10 opto-isolated channels (ULN2803A driver, up to 100mA per output)
• Spindle Interface: 0–10V Analog voltage / PWM + Spindle Speed Feedback (INDEX)
• Host Connection: USB Cable Interface
• Dimensions: 171 mm x 106 mm x 32 mm

Interface & Terminal Connections

• System & I/O Power: 24V, GND (Main System Power) / COM+, COM- (IO Power).
• Axis Driver Outputs (X, Y, Z, A, B, C):
  • X-Axis: XP+ / XP-, XD+ / XD-

  • Y-Axis: YP+ / YP-, YD+ / YD-

  • Z-Axis: ZP+ / ZP-, ZD+ / ZD-

  • A-Axis: AP+ / AP-, AD+ / AD-

  • B-Axis: BP+ / BP-, BD+ / BD-

  • C-Axis: CP+ / CP-, CD+ / CD-

• Spindle Terminals: GNDS, VSO (0-10V), OT1 (CW), OT2 (CCW), INDEX.
• Inputs: IN01 through IN12 with COM+ / COM- power rails.
• General Outputs: DB9 Interface (OUT3 to OUT10 & GND).
• Adjust Ports (ADJUST): FHA, COM-, FHB, SRO, SJR for external override potentiometers.
• Serial Expansion (UART): RXD, TXD, COM-.
• MPG Interface: DB15 Port with onboard STD / NV selector switch.

Customer Benefits & Applications

• Ideal For: 5-Axis & 6-Axis CNC Milling Machines, Dual-Gantry Routers (Master/Slave Y-axis arrangement), Robotic Arms, Complex CNC Engravers, and Cutting Systems.
• Why Buy: Provides full 6-axis scalability without requiring supplementary expansion boards, backed by high pulse speeds (300 kHz) and robust electrical noise immunity over USB.
