Overview:

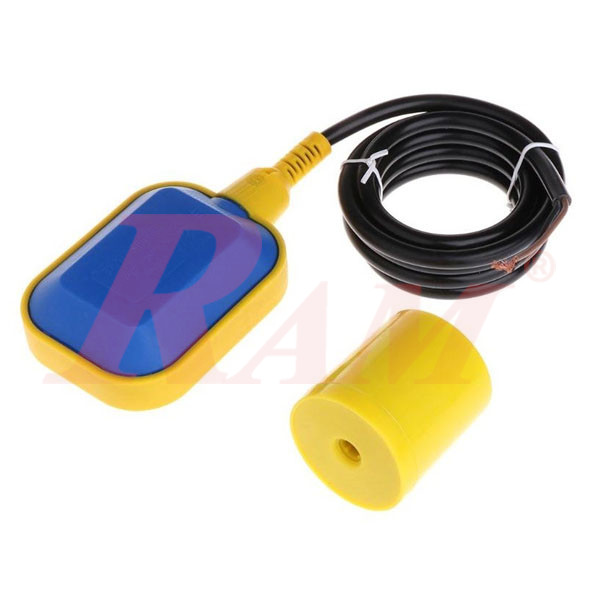

The Square 2M Float Switch is a reliable and durable liquid level controller designed for industrial applications. It automatically controls the operation of pumps, motors, and magnetic valves based on the liquid level in tanks or wells. Its robust construction and IP68 protection rating make it suitable for various environments, including those with sewage water, oils, and most acids and alkalis.
Key Features:

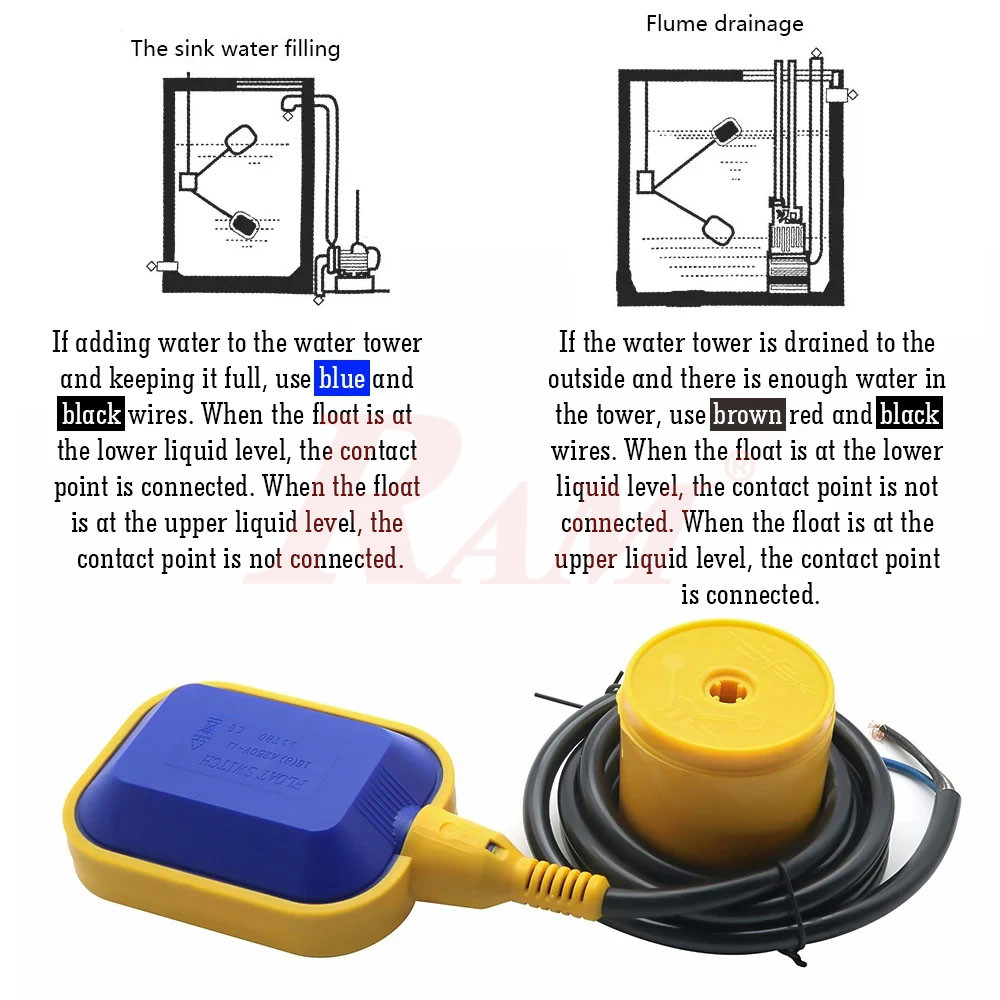

- Automatic control for pumps, motors, and valves
- Suitable for non-flammable liquids
- Resistant to sewage water, oils, acids, and alkalis
- Double-chamber design for hermetic sealing
- High buoyancy ensures smooth operation
- Not explosion-proof; use with isolator switch units in explosive atmospheres
Specifications:
- Rated Voltage/Current: 10(8A) 250V AC ~ 10(4A) 380V AC
- Protection Class: IP68
- Working Pressure: 0.1 MPa
- Operating Temperature: 0°C to 75°C
- Electrical Life: 100,000 operations
- Mechanical Life: 500,000 operations
- Material: Plastic

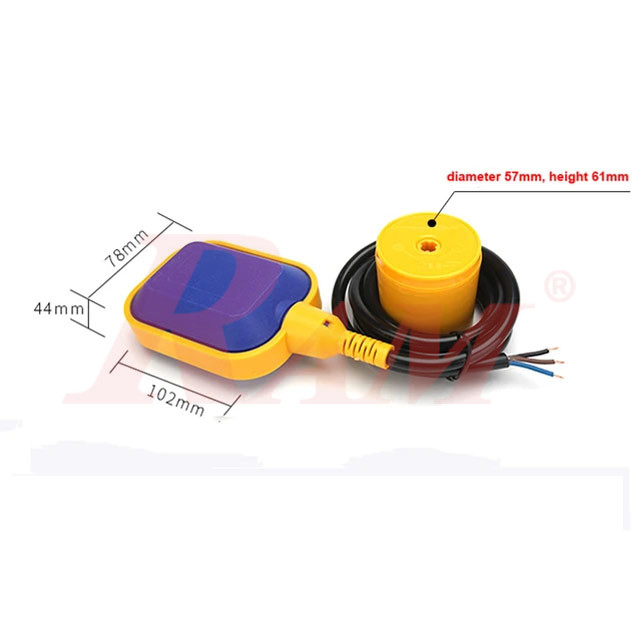

- Float Dimensions: Cylinder: 61 x 57 mm
- Housing Dimensions: Rectangle 102 x 78 x 44 mm
- Cable Length: 2 meters
- Color: Yellow and Blue
- Weight: Approximately 0.44 kg
Applications:
- Industrial water tanks
- Sewage treatment plants
- Oil tanks (with appropriate isolator switch units)
- Chemical processing plants
- Agricultural irrigation systems
Note:
This float switch is designed for use in non-flammable liquids. In potentially explosive atmospheres, such as oil tanks, it should be used in conjunction with appropriate isolator switch units. Ensure proper installation and maintenance for optimal performance.
