Product Description:

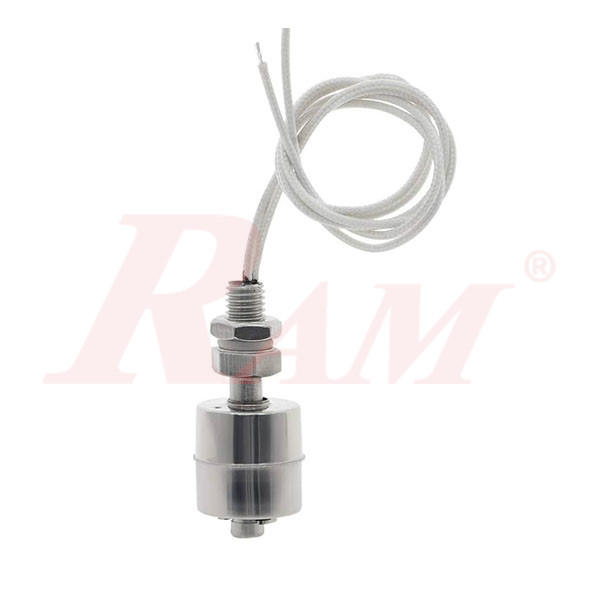

This compact stainless steel float switch is designed for reliable liquid level detection in tanks, containers, or reservoirs. With a vertical mounting design and durable 304 stainless steel body, it is ideal for water, oil, and other non-corrosive liquids. The sensor features a 316 stainless steel float and supports both Normally Open (NO) and Normally Closed (NC) configurations by simply flipping the float direction.
Perfect for automation, alarms, sump pump control, or overflow protection in industrial and DIY applications.
Technical Specifications:
- Mounting Type: Vertical
- Mounting Thread: M10 × 1.5 mm
- Body Material: 304 Stainless Steel
- Float Material: 316 Stainless Steel
- Switch Type: Magnetic reed switch (NO/NC reversible)
- Maximum Switching Voltage: 0-220V AC/DC
- Maximum Switching Current: 0.5 A
- Maximum Load Power: 10 W
- Breakdown Voltage: 220 VDC
- Contact Resistance: ≤ 100 mΩ
- Operating Temperature: 0°C to +120°C
- Float Diameter: 26 mm
- Total Length: 45 mm
- Cable Length: Approx. 30 cm
- Liquid Specific Gravity Requirement: ≥ 0.8
- Installation Hole Diameter: ~10 mm
Notes:
- For higher loads, use with a relay or contactor.
- Float direction determines NO or NC function—reversible by removing and rotating the float.
- Suitable for water, oil, or similar non-aggressive fluids.
- Color of cable may vary depending on batch.
