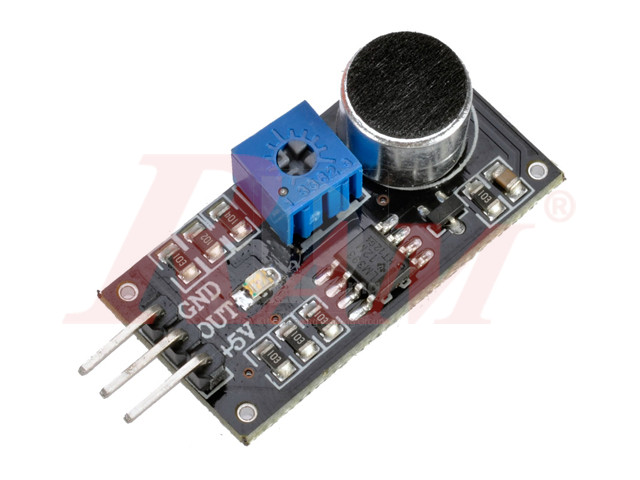

Sound Detector - Digital Output Sensor

https://www.ram-e-shop.com/web/image/product.template/6316/image_1920?unique=6a81919

50.00 EGP 50.0 EGP 50.00 EGP

50.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.SOUND

Features:

  • Main chip: LM393, with polar microphone
  • Working voltage: DC 4~6 V
  • Signal output indicator.
  • Single-way signal output.
  • Output signal is low level.
  • When there is a sound, output low level, signal light is on.
  • Can be used for voice-activated lights, with light sensors to make a sound and light alarm, and in the place for voice control, and voice detection.

For Arduino Connection:

  • Connect +5V to +5V on Arduino.
  • Connect GND to GND on Arduino.
  • Connect OUT to digital pin 2.

Download
