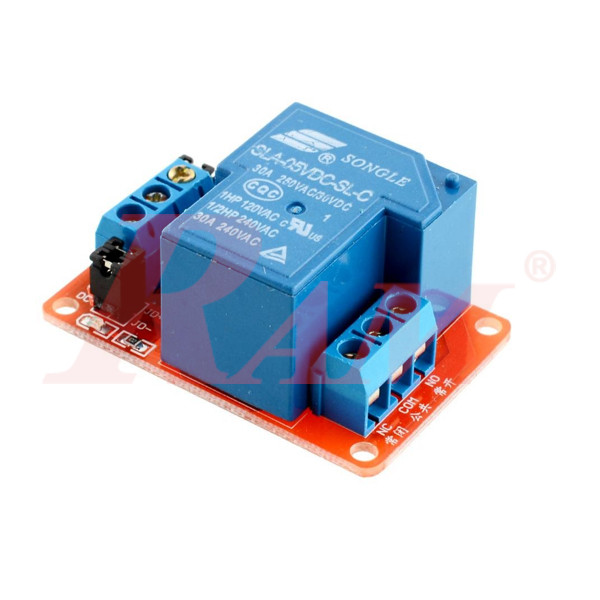

Description:
- 30A relay module, normally open interface maximum load: AC 250V/30A, DV 30V/30A
- Optical coupling isolation, driving ability is strong, stable performance
- Trigger current is 5mA
- The module can be set high-level or low-level trigger by the jumper
- Power indicator light (green), relay status indicator light (red)
- Module Size: 50*33*24 mm
Technical parameters:
- Voltage version: 5V
- The static current: 5mA
- Working current: 190mA
- Trigger current: 2-4mA
Module interface specifications:
- DC+: DC power supply positive pole
- DC-: DC power supply negative pole
- IN: signal triggering pin
- JD+: relay control voltage positive
- JD-: relay control voltage negative
- DC+ and JD+ shorted by jumper cap, DC- and JD- shorted with jumper cap, it is the same voltage between trigger terminal and relay control terminal
- High and low level trigger mode selection. Jumper and L pin connection, IN pin, is low level triggerJumper and H pin connection, IN pin, is high level trigger
- Normally closed pin (NC): relay normally closed pin
- Common pin (COM): relay common pin
- Normally opened pin (NO): relay normally opened pin
