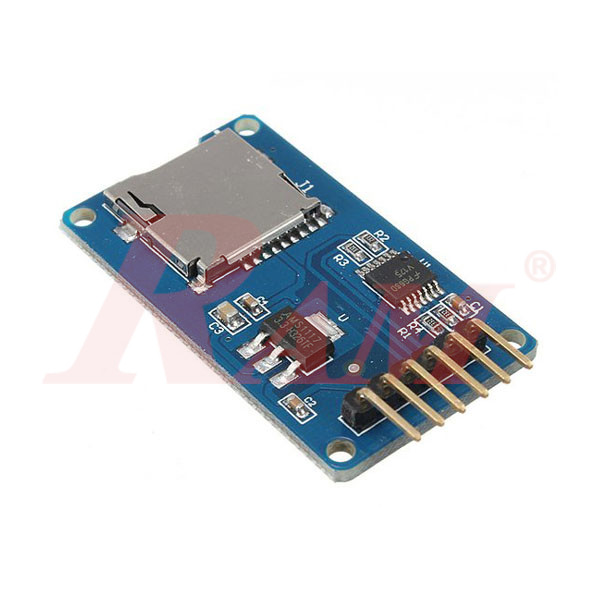

Micro SD Card Module For Arduino or MCU

https://ram-electronics.odoo.com/web/image/product.template/7056/image_1920?unique=74a98dc

5V Compatible Micro SD Card Adapter

50.00 EGP 50.0 EGP 50.00 EGP

50.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.SD.CARD.MODULE

Micro SD TF Card Memory Shield Module SPI Micro SD Adapter For Arduino

Description

The module (MicroSD Card Adapter) is a Micro SD card reader module, and the SPI interface via the file system driver, microcontroller system to complete the MicroSD card read and write files. Arduino users can directly use the Arduino IDE comes with an SD card to complete the library card initialization and read-write.

Features:

  • Supports: Micro SD Card, Micro SDHC (high-speed card)
  • Interface level: 5V or 3.3V
  • Power supply: 4.5V ~ 5.5V, 3.3V voltage regulator circuit board
  • Communication interface: Standard SPI
  • Control Interface: A total of six pins, GND, VCC, MISO, MOSI, SCK, CS
  • 3.3V regulator circuit: LDO regulator output 3.3V
  • Level conversion circuit
  • Positioning holes: 4 x M2 screw holes for easy positioning. Hole diameter is 2.2mm
  • Dimension (mm):  42(L) x 24(W) x 5(H)

Control Interface

A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin.

3.3V regulator circuit: LDO regulator output 3.3V as level converter chip, Micro SD card supply.

Level conversion circuit: Micro SD card into the direction of signals into 3.3V, MicroSD card toward the direction of the control interface MISO signal is also converted to 3.3V, general AVR microcontroller system can read the signal

Micro SD card connector: Since the bomb deck for easy card insertion and removal.

Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm, the module is easy to install positioning, to achieve inter-module combination
