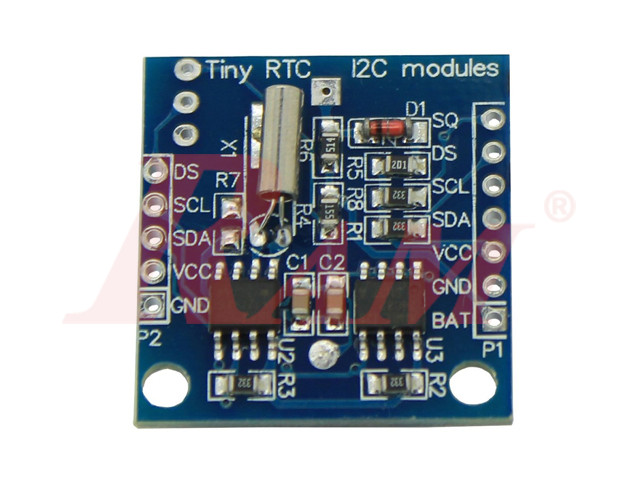

RTC - DS1307+ EEPROM AT24C32 I2C Module With Battery

http://www.ram-e-shop.com/web/image/product.template/7006/image_1920?unique=e2c5923

Real Time Clock Module

65.00 EGP 65.0 EGP 65.00 EGP

65.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.RTC.DS1307.I2C

It is a real-time chip with small power consumption, which has 56 bytes of non-volatile RAM BCD CODE. Address and data can be transmitted by a two-wire series bus. It can provide information on ‘second, minute, hour’ etc.

Days of each month can be adjusted. There is an embedded power induction circuit that has the function of testing no electricity and battery switch.

Features:

  • DS1307, a real-time clock chip(RTC)
  • 24C32 32K I2C EEPROM(Memory)
  • It uses a LIR2032 rechargeable lithium battery with a charging circuit
  • It can solve the problem of DS1307 with a standby battery that can’t read and write.
  • Fully charged, it can run timing one year
  • Pins of DS1307 can provide clock signal of single chip microcomputer
  • It Can cascade to other I2C device
  • Battery Included
