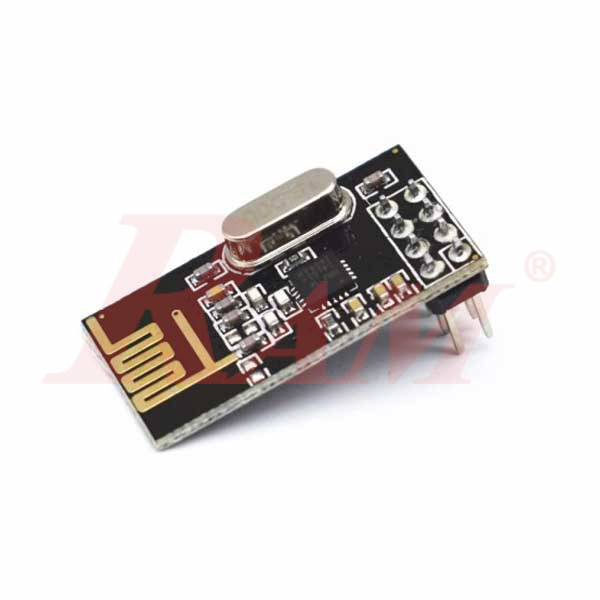

NRF24L01 RF Module 2.4 GHz
Internal Reference:
KIT.NRF24L01.MODULE
nRF24L01 is a wireless communication module with SPI interface in the 2.4GHz band. While the band is in common with WiFi networks, this chip can not connect or interface with them.
Features
- Energy Management: 1.9 - 3.6V
- Frequency: 2.4GHz (not to be confused with Wi-fi!)
- Sampling: up to 13.5mA
- Standby: 26uA
- Transfer rate: max 2Mb / s
- Bus: SPI
- Bus Voltage: 5V Tolerant
- Standard DIP pitch
ATTENTION! Do not connect power to 5V - the module will be damaged. The SPI bus is already 5V compatible
