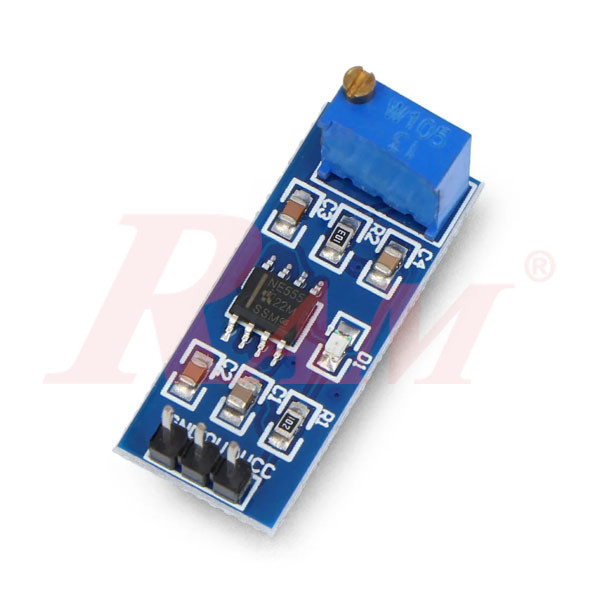

Kit NE555 Frequency Adjustable Pulse Generator Module
Internal Reference:
KIT.NE555.PULSE.GENERATOR.BLUE
Description
The module works as a timer, pulse generator, or oscillator application. It can be used as a time delay. Works with voltages from 5 V to 12 V. Board size: 30 x 13 mm.
Specification
- Module NE555
- Output: Analog Signal
- Built-in potentiometer to adjust the output frequency
- Supply voltage: 5 V to 12 Vdc
- Work cycle:
- Minimum: 50% of a cycle at 3.7 Hz
- Maximum: 98 %, cycle - 1.3 kHz
- Board size: 30 x 13 mm
PIN Description
- VCC Power - the voltage from 5 V to 12 V.
- OUT Output pin
- GND The ground of the system.
