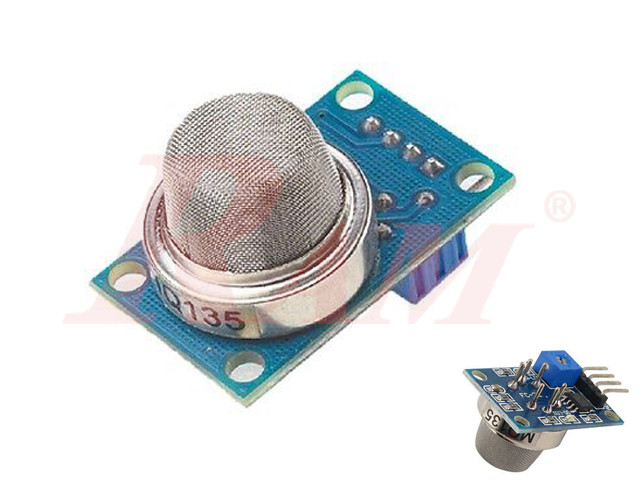

MQ-135 Sensor Air Quality Sensor Hazardous Gas Detection Module

https://www.ram-e-shop.com/web/image/product.template/7312/image_1920?unique=6a81919

100.00 EGP 100.0 EGP 100.00 EGP

100.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.MQ135

Detailed Description:

  • The main chip: LM393, MQ135 gas sensing probe
  • Operating voltage: DC 5V

Sensitive gas:

Ammonia, nitrogen oxide, alcohols, aromatic compounds, sulfide and smoke

Feature:

  • Signal output indicator instructions.
  • Dual signal output (analog output, and TTL level output).
  • TTL output valid signal is low; (output low signal light, which can be accessed by microcontroller IO port).
  • Analog output with increasing concentration, the higher the concentration, the higher the voltage.
  • Sulfide, benzene Department of steam, smoke and other harmful gases with high sensitivity.
  • Has a long life and reliable stability.
  • Rapid response recovery characteristics

Application:

A hazardous gas detection apparatus for the family, the environment, suitable for ammonia, aromatic compounds, sulfur, benzene vapor, smoke and other gases harmful gas detection, gas-sensitive element test concentration.

Air quality sensor detecdetect a wide range of gases, including NH3, NOx, alcohol, benzene, smoke and CO2. Ideal for use in office or factory, simple drive, and monitoring circuit.
