DFPlayer Pro - Dual Channel MP3 Module with 128MB Storage (Arduino / Raspberry Pi Compatible)
Internal Reference:
KIT.MP3.DFR.PRO.128M
Product Description

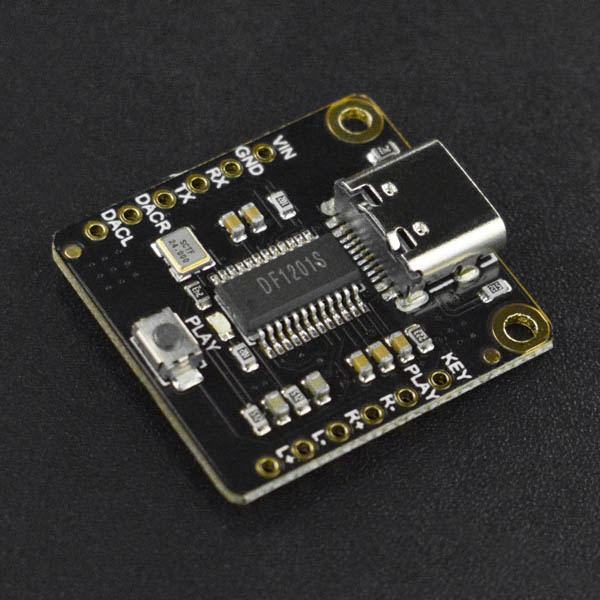

The DFRobot DFPlayer Pro (DFR0768) is a compact dual-channel MP3 player module featuring 128MB of built-in storage, a 24-bit DAC, and multiple audio playback control options. Designed for embedded audio applications, it can play music, voice prompts, and sound effects without requiring an external MicroSD card.
The module supports several popular audio formats, including MP3, WAV, WMA, FLAC, AAC, and APE. Its dual-channel stereo audio output provides separate left and right channels, making it suitable for applications requiring stereo sound reproduction.
The DFPlayer Pro supports multiple control methods, including UART serial communication, AT commands, onboard buttons, and ADKEY control. It also features USB connectivity, allowing audio files to be transferred directly from a computer to its internal storage.
Operating from a 3.3–5V DC power supply, the module is compatible with Arduino, Raspberry Pi, and other microcontroller-based systems. Its compact 23 × 24.5mm design makes it suitable for integration into interactive devices, voice announcement systems, DIY audio projects, musical toys, and automated equipment.
Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | DFRobot |
| Product SKU | DFR0768 |
| Product Name | Fermion DFPlayer Pro |
| Module Type | Dual-Channel MP3 Player |
| Built-in Storage | 128MB |
| Audio Formats | MP3, WAV, WMA, FLAC, AAC, APE |
| Audio DAC | 24-bit DAC |
| Audio Output | Dual-Channel Stereo |
| Analog DAC Outputs | DACL / DACR |
| Channel Outputs | Left (L+ / L-), Right (R+ / R-) |
| Power Supply | 3.3–5V DC |
| Operating Current | >20mA |
| Communication Interface | UART |
| Control Methods | UART, AT Commands, Onboard Buttons, ADKEY |
| USB Connectivity | Supported (for file transfer) |
| Operating Temperature | -20°C to +70°C |
| Operating Humidity | 5%RH to 95%RH |
| Dimensions | 23 × 24.5mm |
Technical Information
1. Built-in 128MB Storage
The DFPlayer Pro includes 128MB of onboard storage for audio files, eliminating the need for an external MicroSD card.
Audio files can be copied directly from a computer through the module's USB connection. The module then plays the stored files independently or under the control of an external microcontroller.
2. Dual-Channel Stereo Audio Output
The module supports two-channel stereo audio, providing separate left and right audio channels.
It includes the following audio connections:
- DACL: Left-channel DAC output.
- DACR: Right-channel DAC output.
- L+ / L-: Left-channel output.
- R+ / R-: Right-channel output.
The separate DAC outputs are available for audio signal interfacing, while the left and right channel outputs provide the module's speaker connections.
3. 24-bit Digital-to-Analog Converter
The integrated 24-bit DAC converts digital audio data into analog signals for audio reproduction.
This supports high-quality audio playback and allows the module to be integrated into stereo audio systems and embedded sound applications.
4. Multiple Audio Formats
The DFPlayer Pro supports several commonly used audio formats:
- MP3
- WAV
- WMA
- FLAC
- AAC
- APE
Support for FLAC and APE makes it suitable for projects that require playback of lossless audio files.
5. Multiple Playback Control Methods
The module offers several ways to control audio playback:
- UART Serial Communication: Control playback and retrieve information through a microcontroller.
- AT Commands: Configure and operate the module using serial AT instructions.
- Onboard Buttons: Control basic playback functions directly.
- ADKEY: Use external button inputs for playback control.
These options allow the module to operate in both standalone and microcontroller-controlled applications.
6. USB File Transfer
The module can be connected to a computer through USB to transfer audio files into its internal 128MB storage.
This makes it convenient to update voice prompts, music, and other audio content without removing a memory card or using a separate programming interface.
7. UART Communication and Microcontroller Integration
The DFPlayer Pro communicates with external controllers through its UART interface.
Its RX and TX pins allow serial communication with Arduino, Raspberry Pi, and other compatible development platforms. DFRobot also provides an Arduino library and example code to simplify integration.
Features
- 128MB built-in storage; no MicroSD card required.
- Dual-channel stereo audio playback.
- Integrated 24-bit DAC.
- Supports MP3, WAV, WMA, FLAC, AAC, and APE formats.
- USB connectivity for transferring audio files.
- UART serial communication.
- AT command control.
- Onboard playback buttons.
- ADKEY control support.
- Separate left and right audio channel connections.
- Compatible with Arduino and Raspberry Pi.
- Compact 23 × 24.5mm module design.
- Low-voltage operation from 3.3V to 5V DC.
Applications
- Voice announcement and audio prompt systems.
- Interactive toys and DIY plush toys.
- Musical alarm clocks.
- Automated public announcement systems.
- Self-service machines and ATM voice prompts.
- In-car audio and voice navigation systems.
- Medical equipment audio notifications.
- Voice alarm and warning systems.
- USB audio playback projects.
- Arduino and Raspberry Pi audio projects.
- Embedded stereo audio systems.
- Personalized electronic gifts and interactive devices.
Frequently Asked Questions (FAQ)
1. What is the DFPlayer Pro module?
The DFPlayer Pro is a compact MP3 player module with 128MB of built-in storage, dual-channel stereo audio output, and a 24-bit DAC. It can play audio files independently or be controlled by a microcontroller.
2. Does the DFPlayer Pro require a MicroSD card?
No. It has 128MB of built-in storage, so an external MicroSD card is not required. Audio files can be transferred directly from a computer through its USB connection.
3. Which audio formats does the module support?
It supports MP3, WAV, WMA, FLAC, AAC, and APE audio formats.
4. Is the DFPlayer Pro compatible with Arduino and Raspberry Pi?
Yes. It supports UART serial communication and can be integrated with Arduino, Raspberry Pi, and other compatible controllers. DFRobot also provides an Arduino library and example programs.
5. How can audio files be uploaded to the module?
Connect the module to a computer through USB and copy the audio files into its built-in storage. No separate MicroSD card or card reader is needed.
6. Does the DFPlayer Pro support stereo audio output?
Yes. It provides separate left and right audio channels, allowing stereo audio playback. It also includes separate DACL and DACR analog outputs.
7. What is the operating voltage of the DFPlayer Pro?
The module operates from a 3.3–5V DC power supply, making it suitable for many embedded electronics and microcontroller applications.
8. Can the DFPlayer Pro operate without an Arduino or Raspberry Pi?
Yes. It supports onboard buttons and ADKEY control, allowing basic playback operation without an external microcontroller. Audio files must first be transferred to its internal storage.
