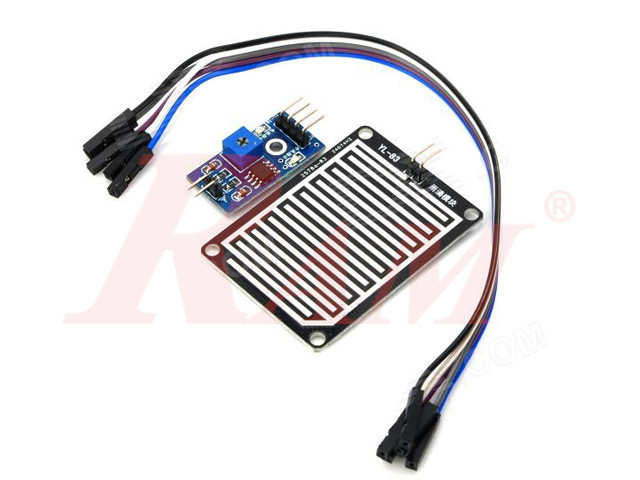

Raindrop Sensor Module - Water Sensor (SKU#M44)

https://www.ram-e-shop.com/web/image/product.template/7309/image_1920?unique=3fe6c72

60.00 EGP 60.0 EGP 60.00 EGP

60.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.M44.RAIN.SENSOR

3.3 to 5Vdc Rain Raindrops Detection Sensor Weather Humidity Module For Arduino or Any microcontroller.

Features:

  • The sensor USES a high-quality FR-4 double material, a large area of 5.5 * 4.0CM, treatment of nickel plating and surface, With Anti-oxidation, electrical conductivity, and long life performance.
  • With potentiometer sensitivity adjustment.
  • The output format: digital switch output (0 and 1) and analog AO voltage output.
  • Has a fixed bolt hole, a convenient installation.
  • The comparator output, signal strong, good waveform, and driving ability are high, for more than 15 mA.
  • The LM393, uses of wide voltage comparator.
  • The working voltage of 3.3 V to 5 V;
  • Size: 5.5 cm x 4.0 cm x 0.2 cm

Usage:

  • Connected to 5 v power supply power lights, no water droplets on an induction plate, the DO output for the high level, switch lights out, a drop of water drops, the DO output for the low level, switch indicator, brush away the water droplets, return to again, the output high-level state.
  • AO analog output can be connected to the microcontroller AD mouth drops of rainfall in the above size.
  • DO TTL digital output can also be connected microcontroller to detect whether it will rain.

Package includes:

  • 1 x Rain Sensor
  • 1 x Rain Module
  • 2 x Dupont Cables
