1 Output Relay Module Works on 5V Signal (SKU#KIT.M2)

https://www.ram-e-shop.com/web/image/product.template/7077/image_1920?unique=9b97f50

With Optocoupler Isolation & High/Low Trigger Selection

50.00 EGP 50.0 EGP 50.00 EGP

50.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.M2.1RELAY

Description:

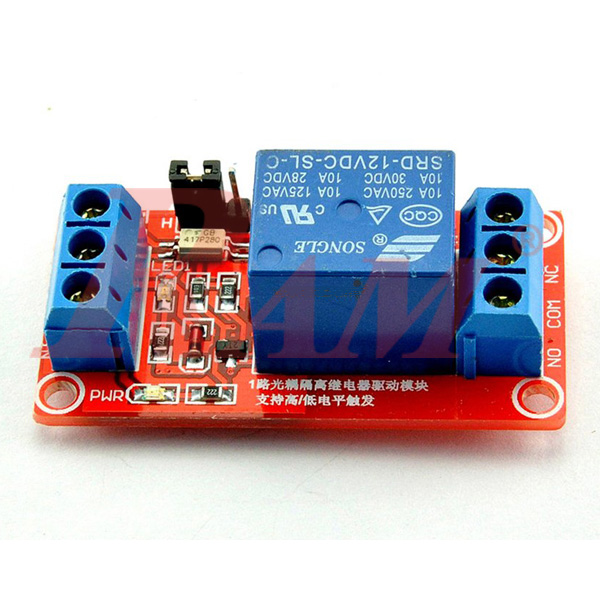

Using SMD optocoupler isolation The module can be high or low trigger by a jumper setting Fault-tolerant design, even if the control line is broken, the relay will not operate The power indicator (green), the relay status indicator (red) All connection interfaces through a direct connection terminal block

Specification:

  • Maximum load: AC 250V/10A, DC 30V/10A
  • Trigger current: 15mA
  • Working voltage: 5V
  • Module size: 50 x 26 x 18.5mm (L x W x H)
  • Four mounting bolts holes, diameter 3.1mm

  Module interface:

  • DC+: positive power supply (VCC) 5Vdc
  • DC-: negative power supply (GND)
  • IN: can be high or low level control relay

  Relay outputs:

  • NO: normally open relay interface
  • COM: Common Interface RelaysNC: normally closed relay interface

  High/Low level trigger options:

  • It is low level trigger when jumper connect to LOW pin
  • It is high level trigger when jumper connect to HIGH pin

  Very good to use it with motor switching control or pump starting applications with your microcontrollers , arduino boards or PC port.
