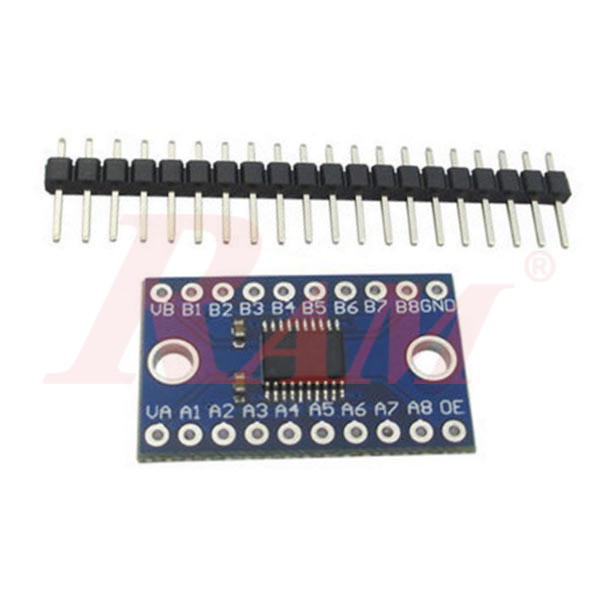

3.3V 5V TXS0108E 8 Channel Logic Level Converter Convert TTL Bi-directional Mutual Convert
- 8 channels bidirectional voltage translation between different logic levels, translate between Ax and Bx automatically
- Voltage level: 1.8V-6V
- Dimension: 21mm x 15mm
How to Use
In the case of translating between 3.3V and 5V systems:
- VCCA connects to 3.3V power supply
- VCCB connects to 5V power supply
- GND connects to power negative pole respectively, the two power supplies should be common-grounded with each other
- When Ax has TTL 3.3V input, Bx will get TTL 5V output
- When Bx has TTL 5V input, Ax will get TTL 3.3V output
- NO direction control required
