TXS0108E - 8 Channel Logic Level Converter Bi-Directional 3.3V/5V

https://ram-electronics.odoo.com/web/image/product.template/8005/image_1920?unique=828cc8c

60.00 EGP 60.0 EGP 60.00 EGP

60.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.LOGIC.TXS

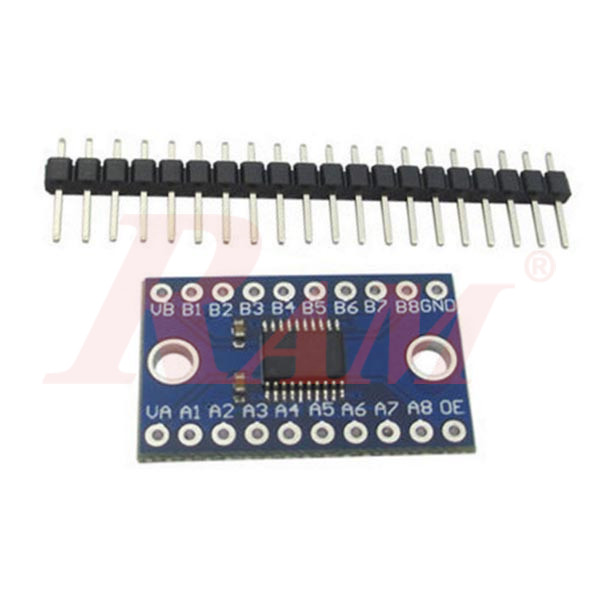

3.3V 5V TXS0108E 8 Channel Logic Level Converter Convert TTL Bi-directional Mutual Convert

  • 8 channels bidirectional voltage translation between different logic levels, translate between Ax and Bx automatically
  • Voltage level: 1.8V-6V
  • Dimension: 21mm x 15mm

How to Use

In the case of translating between 3.3V and 5V systems:

  • VCCA connects to 3.3V power supply
  • VCCB connects to 5V power supply
  • GND connects to power negative pole respectively, the two power supplies should be common-grounded with each other
  • When Ax has TTL 3.3V input, Bx will get TTL 5V output
  • When Bx has TTL 5V input, Ax will get TTL 3.3V output
  • NO direction control required
