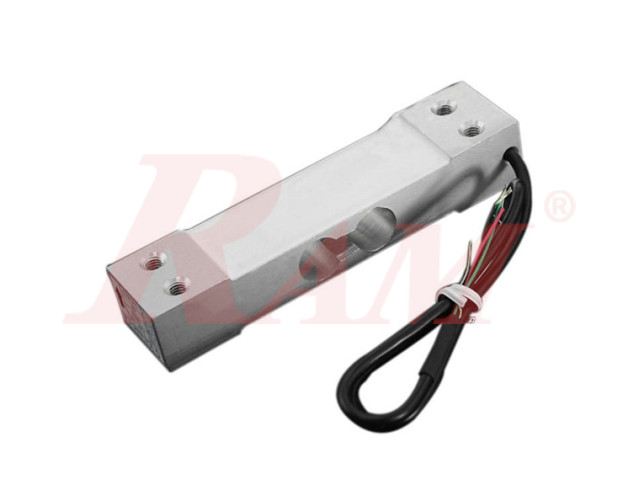

Load Cell 40Kg Weight Sensor - Strain Gauge

https://ram-electronics.odoo.com/web/image/product.template/7307/image_1920?unique=9b97f50

300.00 EGP 300.0 EGP 300.00 EGP

300.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.LOAD.CELL.40KG

General purpose load cell for weight sensing up to 40Kg (Size: 130 x 30 x 22 mm) - to buy additional Weight Scale Analog-to-Digital Converter (ADC) 24-bit board (HX711)

This straight bar load cell (sometimes called a strain gauge) can translate up to 40kg of pressure (force) into an electrical signal. Each load cell can measure the electrical resistance that changes in response to, and is proportional to, the strain (e.g. pressure or force) applied to the bar. With this gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.

Each straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 40kg. These load cells have four strain gauges that are hooked up in a wheatstone bridge formation.

The load cell acts like a bridge, it has 4 colored wires as follows

  • VCC: Red wire
  • GND: Black wire
  • Signal +: Green wire
  • Signal -: White wire

Here are some typical technical specifications for a 40kg load cell:

  • Capacity: 40kg
  • Material: Stainless steel or aluminum
  • Output: mV/V
  • Excitation voltage: 5-15V DC
  • Non-linearity: <0.03% of full scale
  • Hysteresis: <0.02% of full scale
  • Creep: <0.03% of full scale per minute
  • Operating temperature: -10°C to 40°C
  • Protection class: IP65 or higher
