LCD TFT 2.4 inch Touch Display for Arduino UNO & Mega2560

https://www.ram-e-shop.com/web/image/product.template/7080/image_1920?unique=a50fad7 KIT.LCD.TFT2.4.TS

Touch Screen
LCD Driver ILI9341 (ST7789)

450.00 EGP 450.0 EGP 450.00 EGP

450.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.LCD.TFT2.4.TS

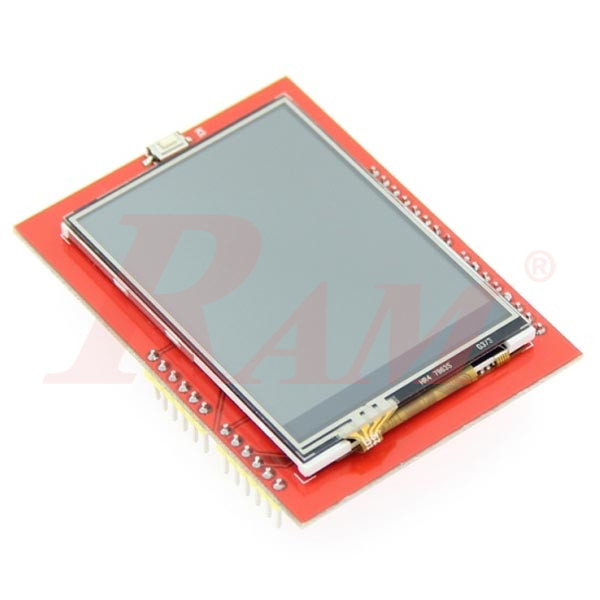

The LCD TFT 2.4 inch touch display for Arduino UNO & Mega2560 is a 2.4 inch TFT module with the ILI9341 (ST7789) driver, 320X240 resolution and touch function. It plugs directly into development boards such as Arduino UNO and Mega2560 without wiring, and it includes an SD card slot.

LCD TFT 2.4 Inch Touch Display for Arduino UNO & Mega2560: Product Description

  • Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
  • 320X240 resolution, clear display, support for touch function
  • Support 16-bit RGB 65K color display, display rich colors
  • 8-bit parallel bus, faster than serial SPI refresh
  • On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
  • Easy to expand the experiment with SD card slot
  • Provides an Arduino library with a rich sample program
  • Military-grade process standards, long-term stable work
  • Provide underlying driver technical support

2.4 Inch TFT Touch Display Arduino: Compatibility

As a 2.4 inch TFT touch display for Arduino, this module plugs into development boards such as the Arduino UNO Rev3 A65 and the Arduino Mega2560 Rev3 for plug-in use without wiring. It provides an Arduino library with a rich sample program.

ILI9341 ST7789 TFT LCD: Product Parameters

Name

Parameter

Display Color

RGB 65K color

SKU

MAR2407

Screen Size

2.4 (inch)

Type

TFT

Driver IC

ILI9341 (ST7789)

Resolution

320*240 (Pixel)

Module Interface

8-bit parallel interface

Active Area

48.96*36.72 (mm)

Module PCB Size

72.20*52.7 (mm)

Operating Temperature

-20℃~60℃

Storage Temperature

-30℃~70℃

Operating Voltage

5V/3.3V

Power Consumption

TBD

Product Weight (Package containing)

39 (g)

2.4 Inch TFT Shield Arduino UNO: Interface PIN Definition

Number

Pin Label

Pin Description

1

LCD_RST

LCD bus reset signal, low level reset

2

LCD_CS

LCD bus chip select signal, low level enable

3

LCD_RS

LCD bus command/data selection signal, low level: command, high level: data

4

LCD_WR

LCD bus write signal

5

LCD_RD

LCD bus read signal

6

GND

Power ground

7

5V

5V power input

8

3V3

3.3V power input, this pin can be disconnected

9

LCD_D0

LCD 8-bit data Bit0

10

LCD_D1

LCD 8-bit data Bit1

11

LCD_D2

LCD 8-bit data Bit2

12

LCD_D3

LCD 8-bit data Bit3

13

LCD_D4

LCD 8-bit data Bit4

14

LCD_D5

LCD 8-bit data Bit5

15

LCD_D6

LCD 8-bit data Bit6

16

LCD_D7

LCD 8-bit data Bit7

17

SD_SS

SD card SPI bus chip select signal, low level enable

18

SD_DI

SD card SPI bus MOSI signal

19

SD_DO

SD card SPI bus MISO signal

20

SD_SCK

SD card SPI bus clock signal

Arduino Mega2560 TFT Shield: Choosing the Right TFT Display

If you need a bigger screen, see the LCD TFT 2.8 inch touch display for Arduino UNO & Mega2560 or the LCD TFT 3.5 inch touch display for Arduino UNO & Mega2560, or browse all LCD modules.

Frequently Asked Questions

What driver IC does the 2.4 inch TFT use?

The driver IC is the ILI9341 (ST7789).

Does it work with Arduino UNO and Mega2560?

Yes. It supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring, and it provides an Arduino library with a rich sample program.

What is the resolution of the 2.4 inch TFT display?

The resolution is 320*240 pixels, with RGB 65K color display.

Does it have an SD card slot?

Yes. It has an SD card slot to expand the experiment, with the SD card pins SD_SS, SD_DI, SD_DO and SD_SCK on the interface.

What voltage does it use?

The operating voltage is 5V/3.3V. It has an on-board 5V/3.3V level shifting IC.

What is the operating temperature?

The operating temperature is -20℃~60℃, and the storage temperature is -30℃~70℃.

The LCD TFT 2.4 inch touch display for Arduino UNO & Mega2560 gives you a compact 320*240 touch display with an 8-bit parallel interface and an SD card slot, ready to plug into your board. If you are building a touch interface for your engineering graduation projects this term, RAM Electronics offers the LCD TFT 2.4 inch touch display for Arduino UNO & Mega2560 in Egypt along with other TFT displays. Contact us if you need help choosing the right display for your project.
