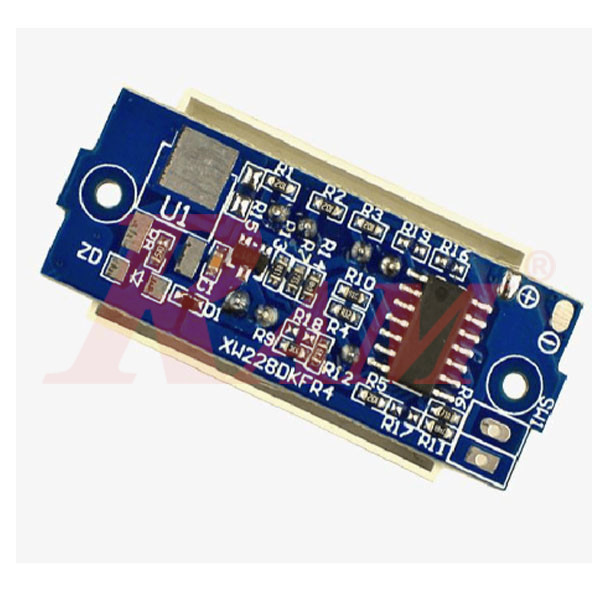

Monitor your 2-cell lithium battery packs effortlessly with this compact and efficient capacity indicator module. Designed for 2S (7.4V nominal) 18650 Li-Po batteries, it provides real-time visual feedback on battery charge levels, ensuring optimal performance for your electronic projects.
Key Features

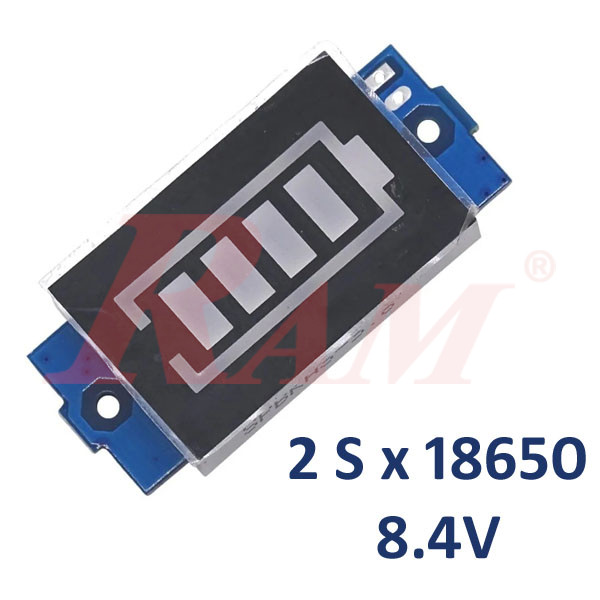

- Real-Time LED Display: Four-segment LED bar graph indicates battery voltage levels.
-
Voltage Thresholds:
- < 6.6V: Only red frame lights up
- 6.6V – 7.0V: 1 bar illuminated
- 7.0V – 7.4V: 2 bars illuminated
- 7.4V – 7.8V: 3 bars illuminated
- 7.8V: All 4 bars illuminated
- Reverse Polarity Protection: Safeguards the module against incorrect connections.
- Wide Compatibility: Suitable for various battery types, including NiMH, Li-Po, and lead-acid batteries.
- Easy Installation: Through-hole interface with 4 pins for straightforward mounting.
Technical Specifications
- Input Voltage Range: 6.6V to 8.4V
- Nominal Voltage: 7.4V (3.7V per cell × 2 cells)
- Current Consumption: <10mA
- Display Type: LED
- Dimensions: 44mm × 20mm × 9mm
- Weight: Approximately 3g
- Operating Temperature: -10°C to 60°C
- Mounting Type: Panel mount
- Material: PCB
