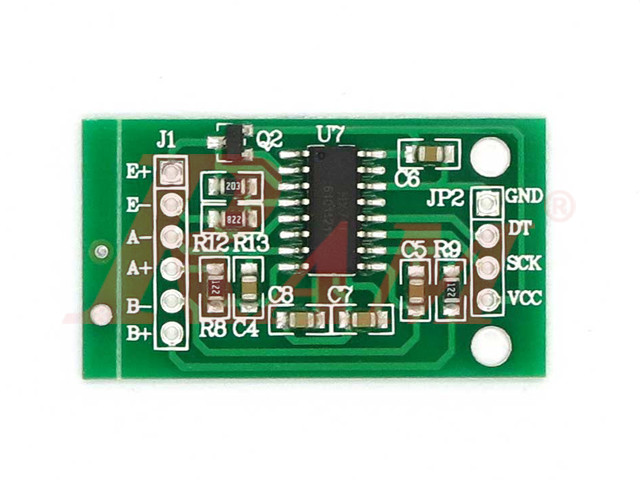

HX711 Weight Scale Analog-to-Digital Converter (ADC) 24-bit

https://ram-electronics.odoo.com/web/image/product.template/7087/image_1920?unique=9b97f50

75.00 EGP 75.0 EGP 75.00 EGP

75.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.HX711.ADC

HX711 is a precision 24-bit analog-to-digital converter (ADC) designed for weight scales (Load Cells) and industrial control applications to interface directly with a bridge sensor.

Specification

  • Differential input voltage: ±40mV (Full-scale differential input voltage is ± 40mV)
  • Data accuracy: 24-bit (24-bit A / D converter chip.)
  • Refresh frequency: 80 Hz
  • Operating Voltage: 5V DC
  • Operating current: <10 mA
  • Size:38mm*21mm*10mm
