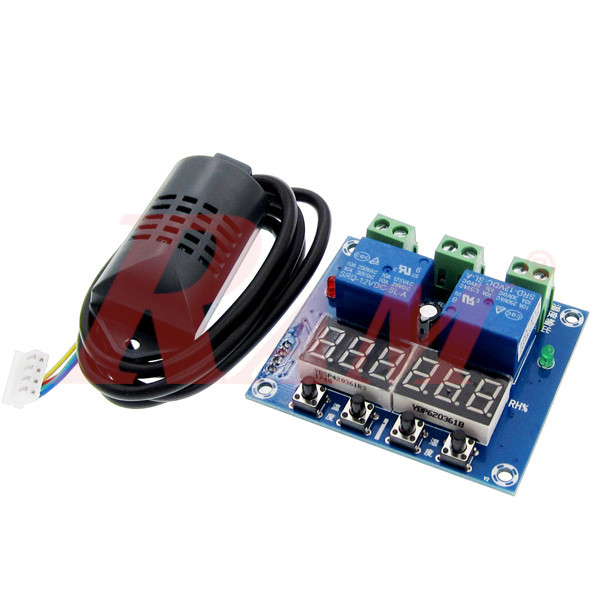

XH-M452 Thermostat Temperature & Humidity Control Switch Relay - Dual Output

XH-M452 Thermostat Temperature Humidity Control Thermometer Hygrometer Controller Module DC 12V LED Digital Display Dual Output

Description:

• Power supply: DC 12V
• Temperature measurement range:-40~120°
• Humidity range:0~100%RH
• Control precision:0.1° 0.1%RH
• Test probe: Integrated sensor
• output: 10A relay
• Size: 65 x 55 x 28 mm

Temperature control:

1. Set the temperature (+): Normal display mode, long press the (+) key for 3 seconds, start temperature numerical flashing, press the + / - key setting values, incorrect operation after 5 seconds, automatically return to detect temperature display
2. Set the temperature (-): Normal display mode, long press (-) button for 3 seconds, stop numerical flashing temperature, press the + / - key set value
3. Restore the factory settings: At the same time long press temperature, and humidity (+) key for 3 seconds, digital display, 888, 888
4. Set the start temperature: Long press the (+) key, start the flashing temperature, set start temperature by + / - key
5. Set stop temperature: Long press (-) button, stop flashing temperature, set stop temperature by + / - key
6. Set to start humidity: Long press the (+) key, start the humidity value flashing, set by + / - key launch humidity value
7. Set stop humidity: long press (-) to stop humidity value, set by + / - key to stop the humidity value
