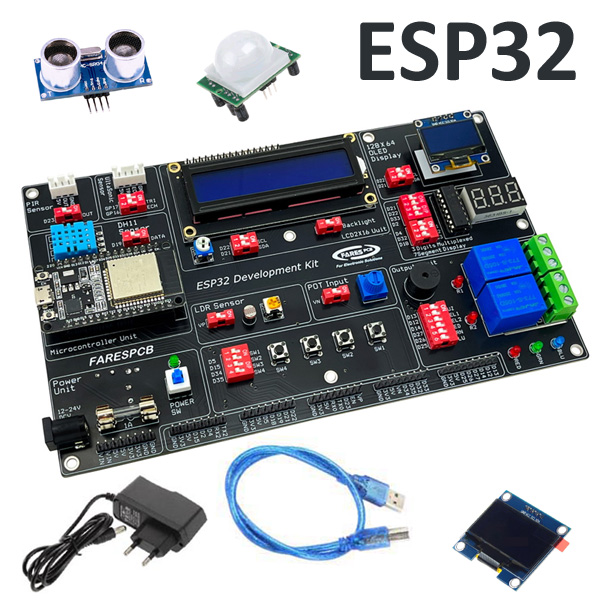

Kit ESP32 Development & Training Kit - Based on ESP32-30 PIN

General Description

This educational development board provides a simple, reliable setup for learning embedded systems and building IoT projects using the ESP32 microcontroller. Designed as an all-in-one hardware ecosystem, it features a safe power supply circuit that protects components and maintains clean signals for accurate sensor readings. The platform hosts a curated selection of essential components, including basic displays, standard sensor connectors, and safe relay switches for external loads. By gathering everything onto one organized board, it completely removes the hassle of messy wires and breadboards, making it easier for students and hobbyists to test their code directly.

Features:

• ESP32 DEVKIT.
• Wide DC input range or USB powered (via DC Jack).
• Direct Keypad Unit.
• General Outputs Unit involves:
  • Three discrete output LEDs (Red, Green, Blue).
  • Two output relays with LED indicators.
  • One active output buzzer.
• 2X16 Character LCD with variable contrast and backlight control via.
• 128X64 OLED display socket.
• Three digits 7-segment display with BCD decoding.
• Multi-Sensor Interface Sockets:
  • DHT11 Temperature & Humidity socket.
  • HC-SR04 Ultrasonic Distance sensor socket.
  • PIR Motion sensor socket.
• Analog Input Platform (Adjustable Potentiometer & Onboard LDR).
• Dedicated DIP switches for hardware peripheral isolation.
• All primary GPIOs are brought out to terminal pin headers.

Kit includes:

1. ESP32 Development Kit Mainboard
2. ESP32 Module
3. OLED LCD
4. PIR Sensor
5. Ultrasonic Sensor
6. Power Adapter
7. Cables


Download

• User Manual & Test Code (Click Here)
