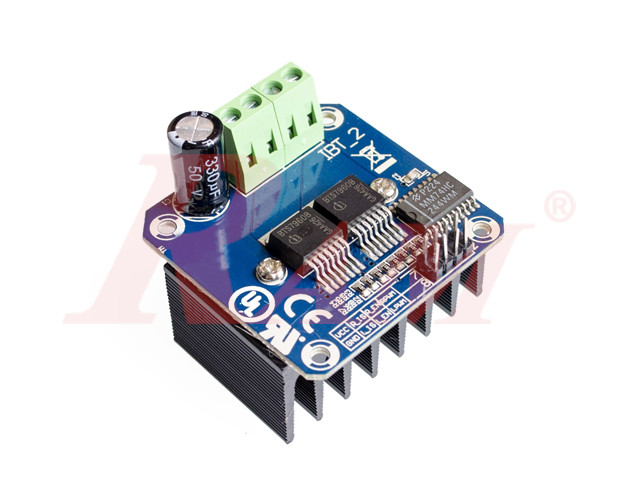

DC Motor Driver BTS7960 Single Channel 43A

https://www.ram-e-shop.com/web/image/product.template/7289/image_1920?unique=6a81919

H-bridge Controller DC 5.5~27V

600.00 EGP 600.0 EGP 600.00 EGP

600.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.DRIVER.DC.BTS7960

INTRODUCTION

BTS7960B H-bridge 43A high-power motor driverModule (For Single Motor). This driver uses Infineon chips BTS7960 composed of high-power drive full H-bridge driver module with thermal over-current protection.

Double BTS7960 H-bridge driver circuit, with a strong drive and braking, effectively isolating the microcontroller and motor driver! High-current 43A

Features:

  • Double BTS7960 large current (43 A) H bridge driver.
  • 5V isolate with MCU, and effectively protect MCU.
  • 5V power indicator on board.
  • Input supply voltage 5.5V to 27V.
  • Voltage indication of motor driver output end.
  • Built-in heat sink.
  • Just need four lines from MCU to the driver module (GND. 5V. PWM1. PWM2).
  • Able to reverse the motor forward, two PWM input frequency up to 25kHZ.
  • Two heat flows pass through an error signal output.
  • Isolated chip 5V power supply (which can be shared with the MCU 5V), can also use the on-board 5V supply.

APPLICATIONS

  • DC motor driver
  • 4WD high-power mobile robot platform
  • Combat robots
  • Pumps
  • Electric fans
  • Conveyors
