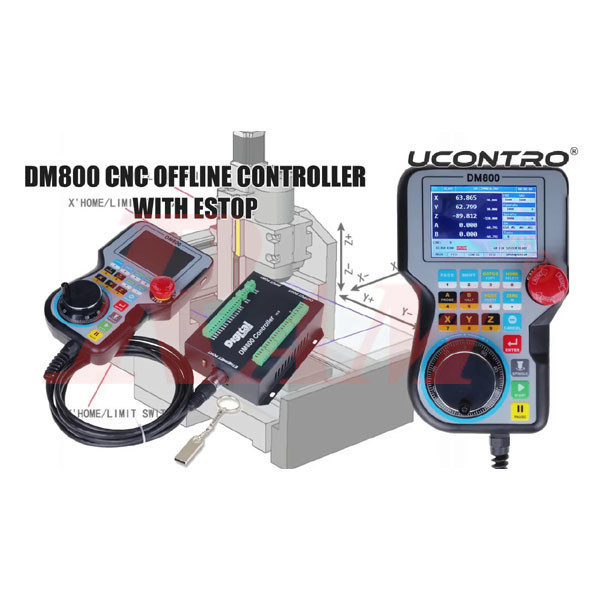

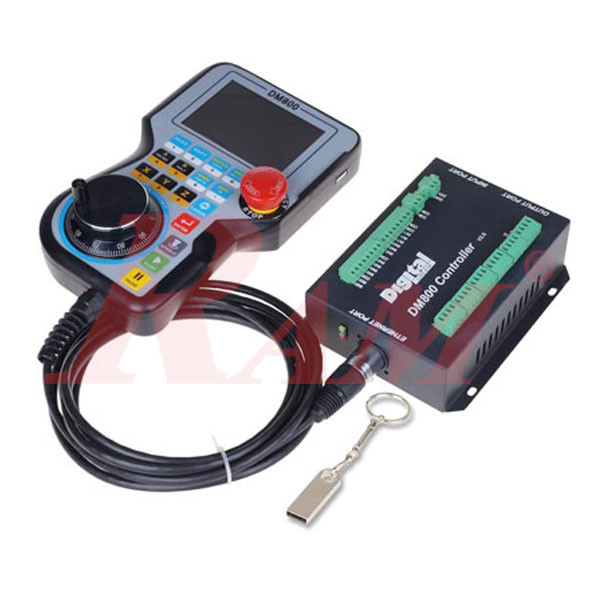

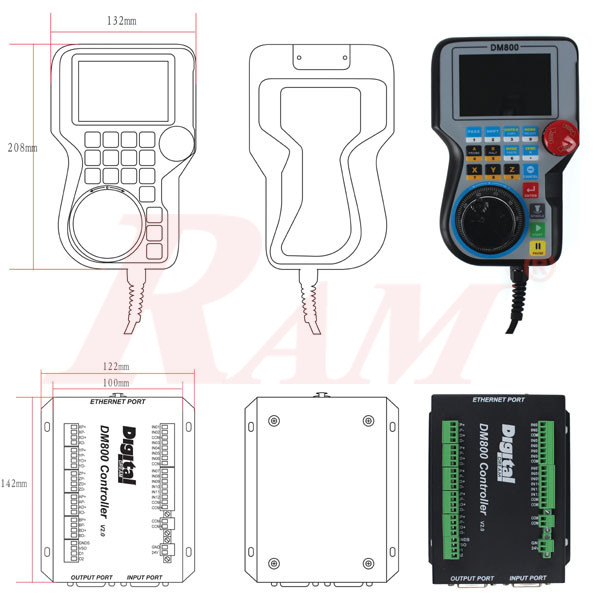

DM800 Offline Hand CNC Controller System 5-Axis

DM800 Ethernet CNC Control System Offline Controller

Overview:

The DM800 is a standalone CNC motion controller designed for upto 5-axis machines. It operates independently without the need for a computer, reading G-code files directly from a USB flash drive.

Key Features:

• Offline Operation: Reads G-code files from a USB flash drive, eliminating the need for a connected computer.
• Ethernet Communication: Facilitates communication between the handheld unit and the mainboard via Ethernet.
• Integrated SD Card: Comes with a built-in SD card for additional storage.

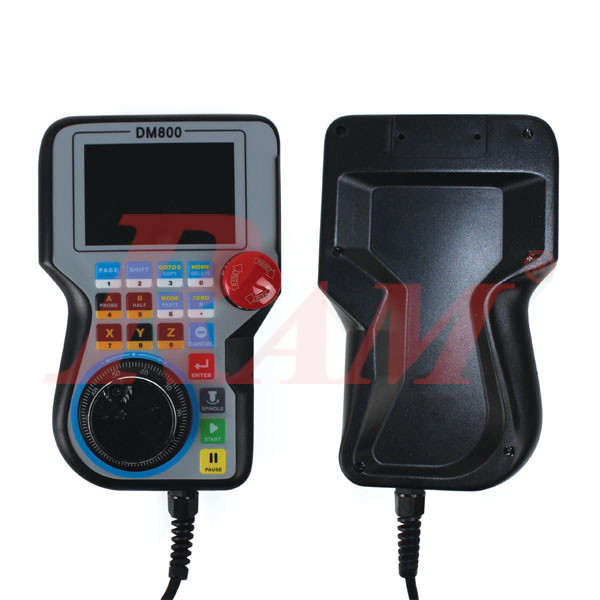

• User-Friendly Interface: Equipped with a 3.8-inch TFT screen for clear display and easy navigation.
• MPG Handwheel: Includes a built-in Manual Pulse Generator (MPG) for precise manual control.

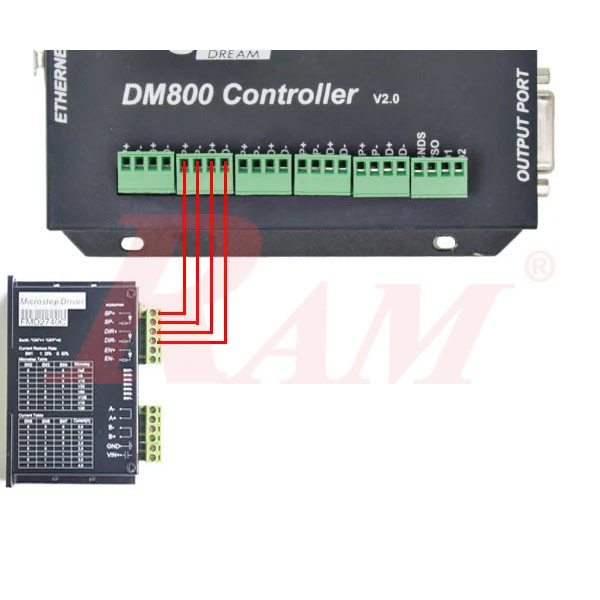

• High-Speed Pulse Output: Supports up to 460KHz pulse output for each axis, ensuring smooth and precise motion.
• ARM Motion Control Chip: Utilizes an ARM-based motion control chip for reliable performance.
• Built-in Storage:
  • Internal 16GB storage
  • Includes a 8GB U-disk for file transfer
• Spindle Control:

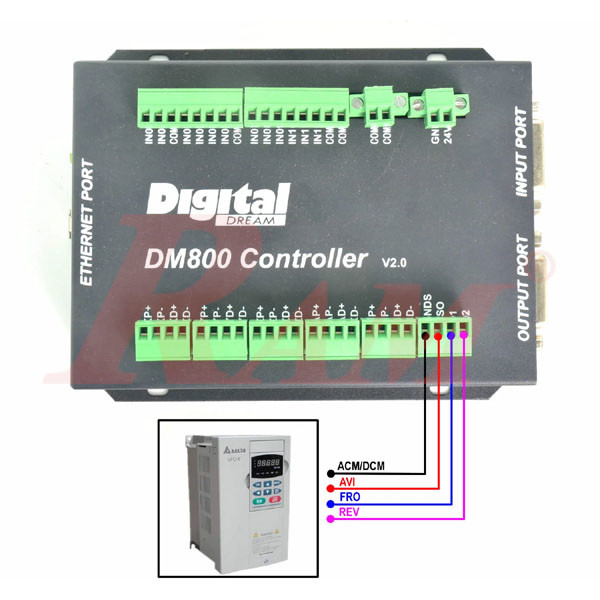

  • 1 × 0–10V analog spindle output (can be configured to PWM)
• High-Speed Pulse Output: Supports up to 460KHz pulse output for each axis, ensuring smooth and precise motion.
  • Supports up to 5 axes
  • Delivers up to 460KHz pulse output per axis
• Integrated Controls:
  • Built-in MPG (Manual Pulse Generator) for precision manual movement
  • Integrated E-stop button for safety
• Optocoupler Isolation:
  • 20 × universal isolated IO inputs
  • 12 × universal isolated IO outputs
• Power Supply:
  • Requires 24V DC input, current ≥ 1A

Technical Specifications:

• Axes Supported: 3, 4, or 5
• Input Voltage: 24V DC (≥1A)
• Display: 3.8-inch TFT screen
• Control Interface: Ethernet
• Input Interfaces: 20 photoelectric isolated inputs
• Output Interfaces: 12 photoelectric isolated outputs
• Spindle Speed Output: 0–10V analog (configurable to PWM)
• Pulse Output Frequency: Up to 460KHz per axis
• Built-in Storage: SD card
• Manual Control: Integrated MPG handwheel

Common Abbreviations:

• FRO (Feed Rate Override): Adjusts the feed rate during operation.
• SRO (Spindle Speed Override): Adjusts the spindle speed during operation.
• SRJ (Speed Rate Jog): Adjusts the manual jog speed.
• MPG (Manual Pulse Generator): Allows for manual control of axis movement.
