DIY Phantom LED Digital 32x16 Dot Matrix Spectrum Clock

• Product Name: 32×16 Lattice Spectrum Clock DIY Kit (512 LEDs)
• Product Type: DIY LED Music Spectrum Display Kit – soldering required

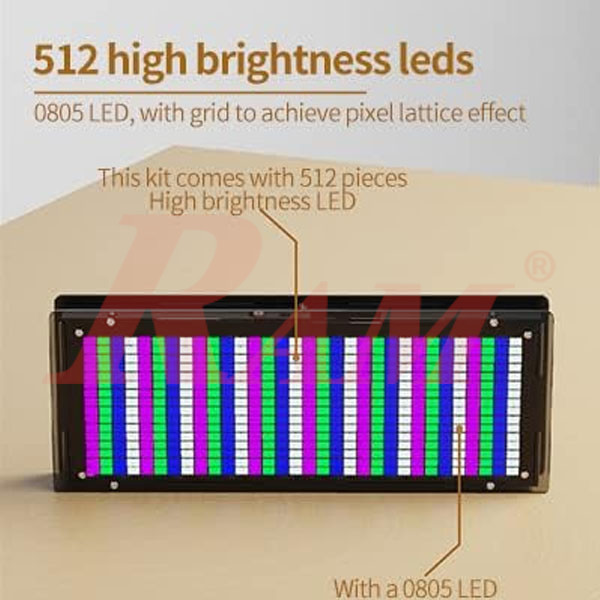

• LED Configuration: 32 columns × 16 rows = ~512 SMD 0805 LEDs
• LED Bead Type: 0805 surface-mount LEDs; full patch welding
• Input Voltage: DC 5 V (USB-power or similar)
• Dimensions (assembled): Approx. 220 mm × 85 mm × 28 mm
• Enclosure Material: PCB module (no housing included) – board only

Features:

• Real-time sound-activated music spectrum display

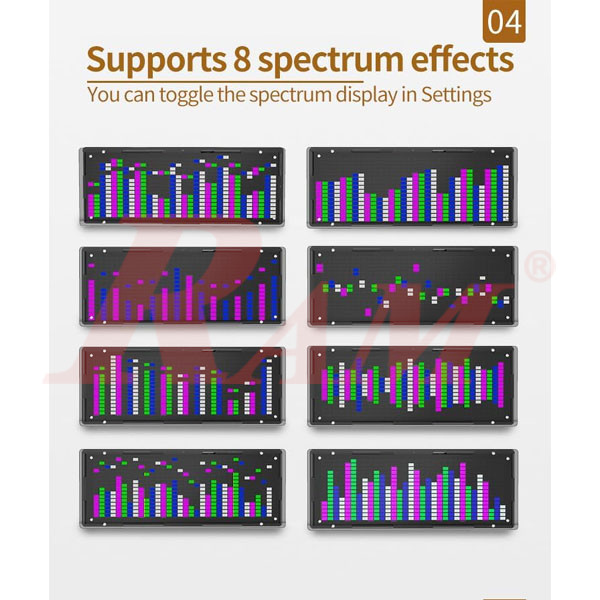

• Multiple display modes (e.g., rhythm, static clock display when idle)

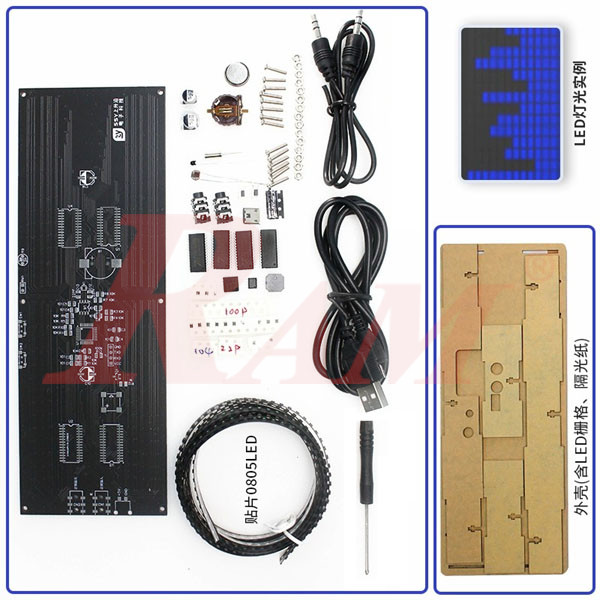

• Requires soldering (DIY kit; not pre-assembled)
• Assembly Level: For hobbyists and students to practice soldering skills; component soldering required

Ideal For: STEM education, electronics hobbyists, makers, and classroom kits.

Download

• User Manual
