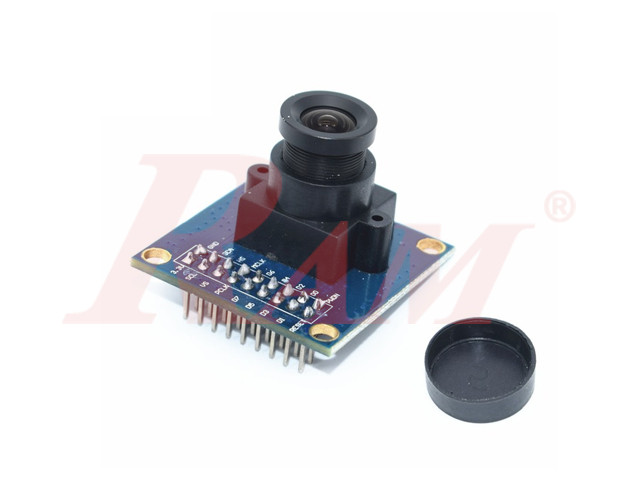

OV7670 Camera Module
Internal Reference:
KIT.CAMERA.OV7670
General Description
The OV7670/OV7171 CAMERACHIPs is a low-voltage CMOS image sensor that provides the full functionality of a single-chip VGA camera and image processor in a small footprint package.
The OV7670/OV7171 provides full-frame, sub-sampled, or windowed 8-bit images in a wide range of formats, controlled through the Serial Camera Control Bus (SCCB) interface.
This product has an image array capable of operating at up to 30 frames per second (fps) in VGA with complete user control over image quality, formatting, and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control, and more, are also programmable through the SCCB interface.
In addition, OmniVision CAMERACHIPs use proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as fixed pattern noise (FPN), smearing, blooming, etc., to produce a clean, fully stable color image.
Features
- High sensitivity for low-light operation
- Low operating voltage for embedded portable apps
- Standard SCCB interface compatible with I2C interface
- Supports VGA, CIF, and resolutions lower than CIF for RGB (GRB 4:2:2, RGB565/555), YUV (4:2:2), and YCbCr (4:2:2) formats
- VarioPixel® method for sub-sampling
- Automatic image control functions including:
- Automatic Exposure Control (AEC), Automatic Gain
- Control (AGC), Automatic White Balance (AWB),
- Automatic Band Filter (ABF), and Automatic
- Black-Level Calibration (ABLC)
- Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming
- ISP includes noise reduction and defect correction
- Supports LED and flash strobe mode
- Supports scaling
- Lens shading correction
- Flicker (50/60 Hz) auto-detection
- Saturation level auto adjust (UV adjust)
- Edge enhancement level auto-adjust
- De-noise level auto-adjust
Applications
- DIY Projects with Arduino or Any microcontroller
- Cellular and Picture Phones
- Toys
- PC Multimedia
- Digital Still Cameras
Key Specifications
- Array Element (VGA) 640 x 480
- Power Supply
- Digital Core 1.8VDC +10%
- Analog 2.45V to 3.0V
- I/O 1.7V to 3.0V
- Power Requirements
- Active TBD
- Standby < 20 µA
- Temperature Range
- Operation -30°C to 70°C
- Stable Image 0°C to 50°C
- Output Formats (8-bit)
- YUV/YCbCr 4:2:2
- RGB565/555
- GRB 4:2:2
- Raw RGB Data
- Lens Size 1/6"
- Chief Ray Angle 24°
- Maximum Image Transfer Rate 30 fps for VGA
- Sensitivity 1.1 V/Lux-sec
- S/N Ratio 40 dB
- Dynamic Range TBD
- Scan Mode Progressive
- Electronics Exposure Up to 510:1 (for selected fps)
- Pixel Size 3.6 µm x 3.6 µm
- Dark Current 12 mV/s at 60°C
- Well Capacity 17 K e
- Image Area 2.36 mm x 1.76 mm
- Package Dimensions 3785 µm x 4235 µm
