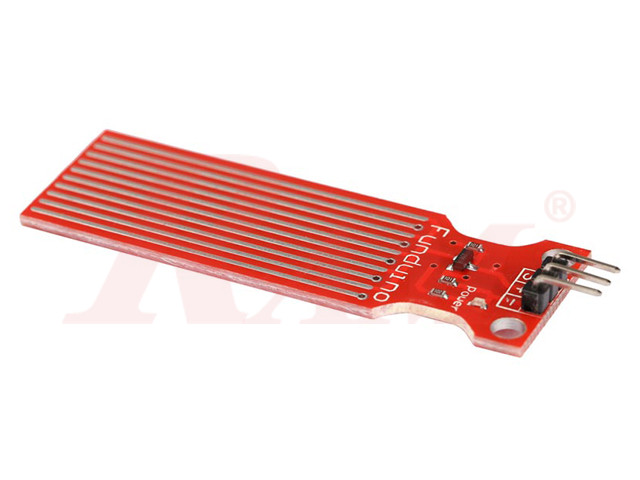

C43 Water Level Sensor & Liquid Water Droplet Depth Detection
Internal Reference:
KIT.C43.WATER.SENSOR
Description
This is a simple and small portable water level/water droplet identification, and detection sensor water that has high performance. It has low power consumption and high sensitivity.
A water level sensor is an easy-to-use, cost-effective high-level/drop recognition sensor, which is obtained by having a series of parallel wires exposed traces measured droplets/water volume to determine the water level.
Easy to convert water to analog signal conversion and output analog values can be directly read Arduino development board to achieve the level alarm effect.
Specifications
- Working Voltage: DC 3-5V
- Working Current: <20mA
- Sensor Type: Simulation
- Detection Area: 40 mm x 16 mm
- Manufacturing Process: FR4 double spray tin
- Fixed Hole Size: 3.2 mm
- Humanized Design: Half moon sag nonskid treatment
- Working Temperature: 10 °C to 30 °C
- Work Humidity: 10% to 90% without condensation
- Size: 65 mm x 20 mm x 8 mm
