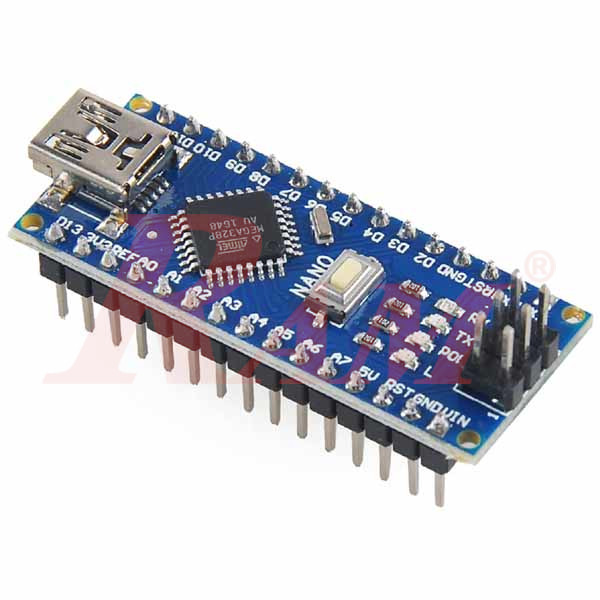

Arduino Nano 328 With CH340 Chip - Clone
Original MCU Chips
Internal Reference:
KIT.ARDUINO.NANO.CH340
MADE IN CHINA
Overview
The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328
Specifications
- Microcontroller Atmel ATmega328
- Operating Voltage (logic level) 5 V
- Input Voltage (recommended) 7-12 V
- Input Voltage (limits) 6-20 V
- Digital I/O Pins 14 (of which 6 provide PWM output)
- Analog Input Pins 8
- DC Current per I/O Pin 40 mA
- Flash Memory 32 KB (ATmega328) of which 2 KB used by bootloader
- SRAM 2 KB (ATmega328)
- EEPROM 1 KB (ATmega328)
- Clock Speed 16 MHz
- Dimensions 0.73" x 1.70"
- Length 45 mm
- Width 18 mm
- Weight 5 g
