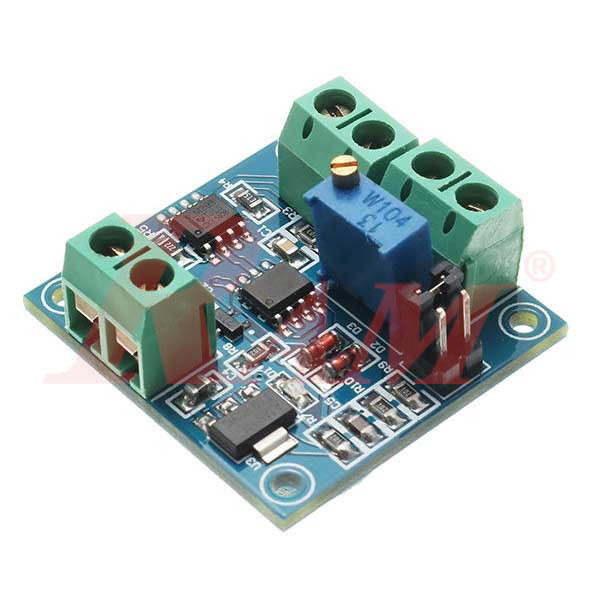

The voltage to pulse width modulation (PWM) can transform analog voltage into 0-100% PWM duty cycle output. The converted voltage range can be selected (using a jumper) either from 0 to 5V or 0 to 10V. For example, if the selected range is 0 to 10v, then 10V will correspond to 100% duty cycle, 9V correspond to 90% duty cycle, and so on. The precision of the converted value can be fine-tuned using the potentiometer.
Features
- Operating Voltage: DC 7-12V
- Conversion Range (Adjustable): 0-5V or 0-10V into 0-100% PWM
- Error Tolerance: 1%-3%
- Frequency：50KHz
- Working temperature:-25~85℃
