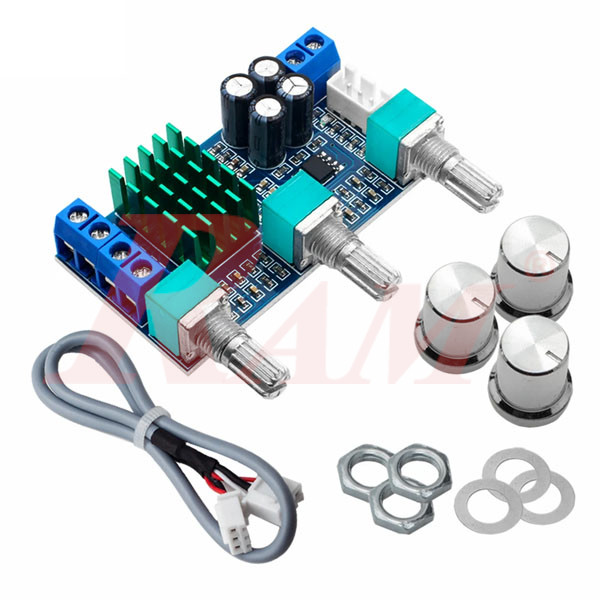

XH-M567 TPA3116D2 Stereo Digital Audio Amplifier Board 2x80W

https://www.ram-e-shop.com/web/image/product.template/9236/image_1920?unique=2749c96

Dual Channel Stereo
With Audio Plug Connector Output

275.00 EGP 275.0 EGP 275.00 EGP

275.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.AMP.M567.TPA3116.80W

XH‑M567 TPA3116D2 Digital Amplifier Board (Dual Channel 2×80 W, DC 12–24 V)

Description:

Compact Class‑D stereo amplifier board based on the TPA3116D2 chip. Delivers up to 80 W per channel at 4 Ω, with high efficiency and built-in protection. Perfect for DIY speaker projects, home audio systems, and car audio setups.

Key Features:

  • Dual-channel Class‑D amplifier: 2 × 80 W max @ 4 Ω
  • Compatible with 4–8 Ω speakers
  • High efficiency (>90%) with low heat generation
  • Wide input voltage: DC 12–24 V
  • Multiple protection features: over-voltage, under-voltage, overheat, DC offset, and short-circuit protection
  • Compact size and lightweight design

Technical Specifications:

FeatureSpecification
ModelXH‑M567
Amplifier ChipTPA3116D2 (Class‑D)
Input Voltage12–24 V DC
Output Power2 × 80 W (at 4 Ω)
Efficiency>90%
Protection FeaturesOver-voltage, under-voltage, thermal, DC detect, short-circuit
Board Dimensions~60 × 32 × 14 mm
Weight~40 g

Usage Notes:

  • Use a stable 12–24 V DC power supply with sufficient current output.
  • Connect speakers with correct polarity using screw terminals or solder pads.
  • Ensure adequate airflow or cooling when operating at high power levels.
  • Built-in fault protection prevents damage from overload conditions.
