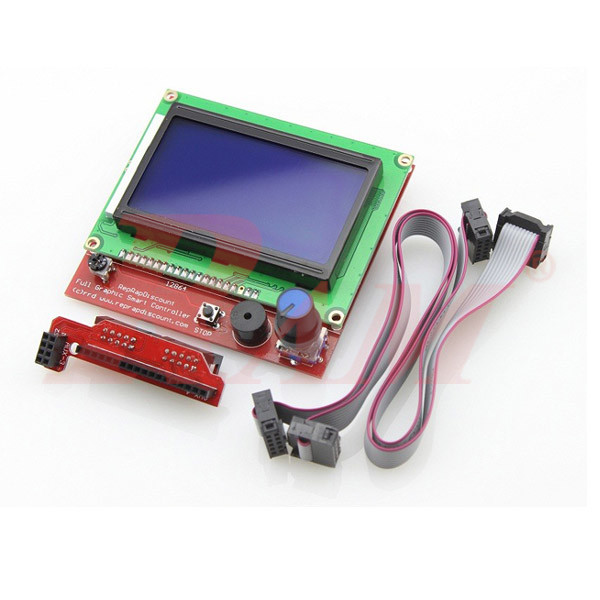

RAMPS LCD 128x64 Smart LCD Controller with SD Card interface (SKU#3D1002)

https://www.ram-e-shop.com/web/image/product.template/7266/image_1920?unique=6a81919

650.00 EGP 650.0 EGP 650.00 EGP

650.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.3D.1002

This Smart Controller contains an SD-Card reader, an rotary encoder and a 128x64 LCD display. You can easy connect it to your Ramps board using the "smart adapter" included.

After connecting this panel to your Ramps you don't need your PC any more, the Smart Controller supplies power for your SD card. Furthermore, all actions like calibration, axes movements can be done by just using the rotary encoder on the Smart Controller.

Print your 3D designs without PC, just with a g-code design stored on the SD card.

Compared to the 20x4 Smart LCD Controller With Adapter, this 128x64 screen can display much more information, which would help for you run the 3D printer without a computer.

Partlist

  • 1 x 3D ramps 12864LCD controller
  • 1 x Connector
  • 2 x 20 cm cable

Features

  • SainSmart RAMPS1.4 LCD12864 intelligent controller
  • LED background light control circuit
  • This controller is 100% compatible with the original design.
  • LED background light control circuit, a small function of intelligent controller, With pin short time to decide on all LED turn or steering 30 seconds

You can turn on the light time to do long or short form of the adjustment TRIMM R4100K from 10 seconds to 2 minutes If you use a print job at night and parts department, which means that the new modifications LCD backlight would be suitable for you
