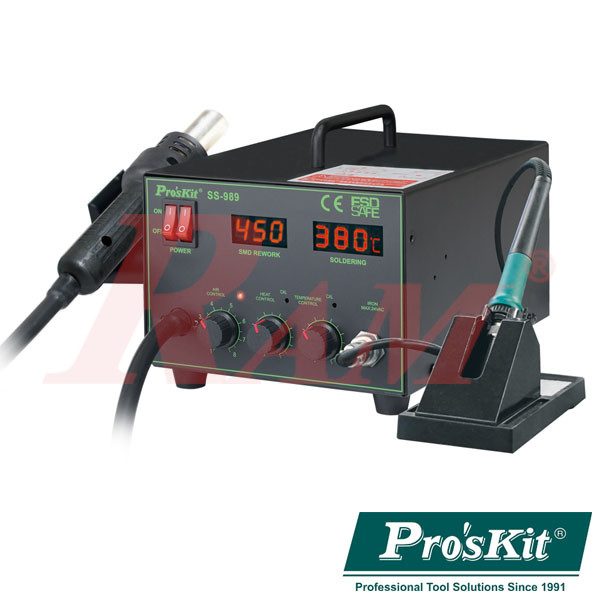

The SS-989H is a professional-grade rework station combining a hot air gun and a soldering iron in one compact unit. Ideal for electronics assembly, repair, and prototyping.
Key Features:
- Accurate temperature control with microprocessor temperature control
- Temperature calibration function for precise adjustments
- Closed-circuit sensor design ensures stable temperature
- Certified international safety standards (CE, ESD, RoHS compliance)
- UL-certified wires with silicone handpiece cord heat-resistant up to 200°C
- Additional ground contact and power cord socket for safety
- 2x lifetime compared to standard models
- Fast heating: reaches 300°C in 36 seconds
- Smart microprocessor controls for energy saving and efficient operation
- Auto cooling system prolongs heating element life by blowing air after shutdown
- Alumina ceramic soldering iron heating element for high power and fast warm-up
- Individual function start allows energy saving or sharing function by two users simultaneously
- Adjustable temperature and airflow for easy rework of surface mount or hole mount components like QFP, SOP IC devices

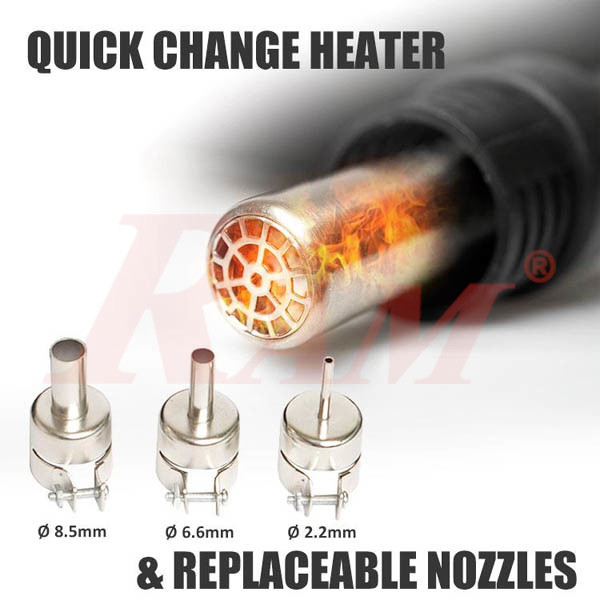

- Interchangeable hot air nozzles, compatible with most branded nozzles and tips
- Comes with 3 nozzles included
- Quiet operation (<45dB)

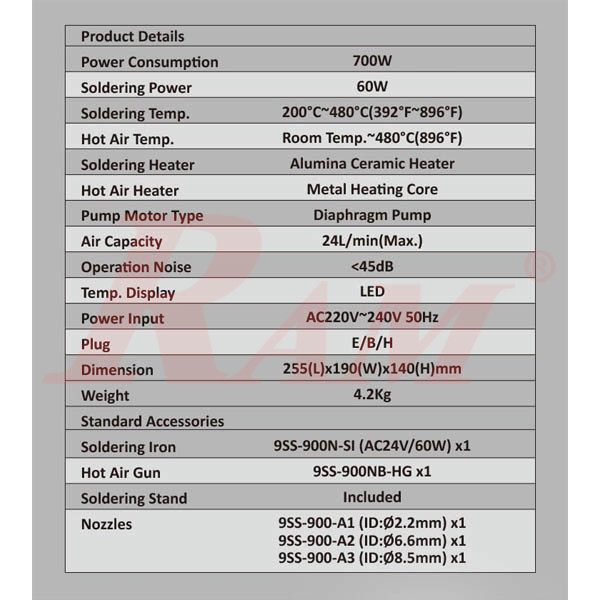

Technical Specifications:
- Power Consumption: 700W
- Soldering Power: 60W
- Soldering Temperature Range: 200°C – 480°C
- Hot Air Temperature Range: Ambient – 480°C
- Soldering Heating Element: Alumina Ceramic
- Hot Air Heating Element: Metal Heating Core
- Pump Type: Diaphragm Pump
- Air Capacity: Max.. 24 L/min
- Temperature Display: LED
- Equipment Noise: <45dB
- Input Voltage: AC 220V–240V, 50Hz
- Dimensions: 255 x 190 x 140 mm
- Weight: 4.2 kg (with hot air gun)

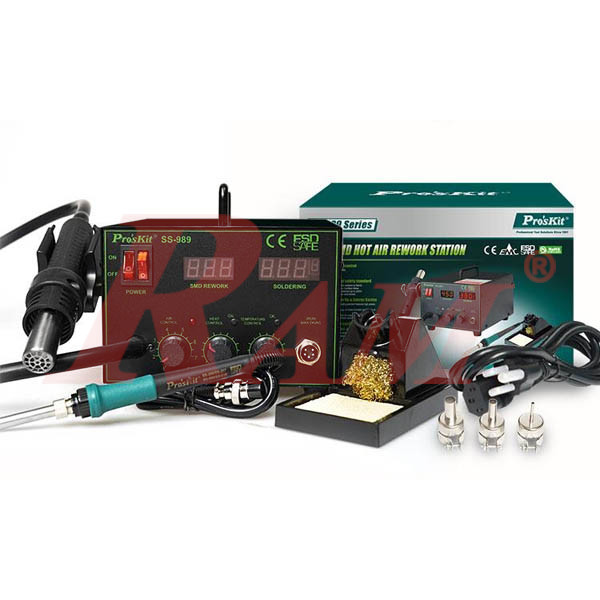

Package Includes:
- SS-989H Rework Station

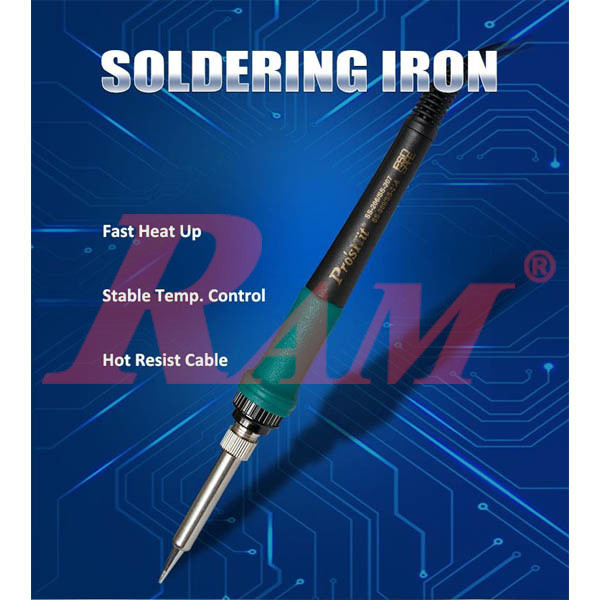

- Soldering Iron (AC 24V / 60W)
- Soldering Iron Stand
- Hot Air Gun Holder
- Air Nozzles: 2.2mm, 6.6mm, 8.5mm
- Power Cord
- User Manual
Applications:
- SMD soldering and desoldering (SOIC, QFP, PLCC, BGA)
- Mobile phone and electronics repair
- Circuit board assembly and prototyping
- Educational and training labs
