The NX8048P070-011C Nextion display is a 7 inch HMI touch screen that handles the graphics and touch on its own, so your controller only needs to send and receive short serial messages. As a 7 inch Nextion HMI display with 800x480 resolution and a capacitive touch panel, it suits control panels, smart-home screens, machine interfaces and engineering graduation projects.

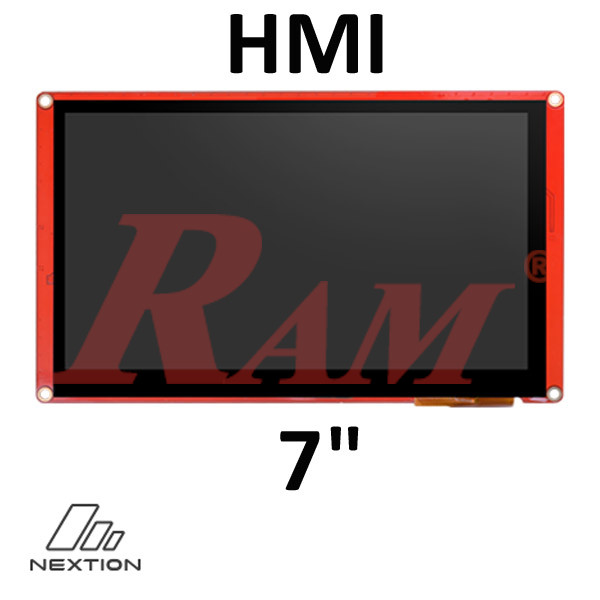

NX8048P070-011C – 7.0" Intelligent Series HMI Capacitive Touch Display (No Enclosure)
Specifications
- Product name: NX8048P070-011C
- Series: Nextion Intelligent Series
- Display size: 7.0"
- Resolution: 800 × 480 (configurable to 480 × 800)
- Touch type: Capacitive
- Color depth: 65K colors (16-bit RGB565)
- Brightness: 300 nit, adjustable 0–100%
- Backlight life: >30,000 hours
- MCU: 200 MHz
- Flash: Up to 128 MB
- RAM: 512 KB
- EEPROM: 1024 bytes
- Instruction buffer: 4096 bytes
- GPIO: 8 (IO0–IO7); IO6 and IO7 support PWM
- RTC: Built-in, CR1220 battery
- Audio: Supports 16Ω 0.5W speaker (Φ40 × 5.2 mm)
- Serial: 4-pin 2.54 mm TTL, 3.3V/5V compatible, 2400–921600 bps
- SD card: microSD up to 32 GB (FAT32)
- Operating voltage: 4.75–6.5V DC
- Typical current: ~530 mA @ 5V (full brightness)
- Maximum current: ~750 mA
- Sleep current: ~170 mA
- Recommended supply: 5V / 1.0A
- Operating temperature: −20°C to +70°C
- Storage temperature: −30°C to +85°C
- Humidity: 10–90% RH, non-condensing
- Dimensions: 181.0 × 111.0 × 13.0 mm (module only)
- Visual area: 164.90 × 100.00 mm
- Active area: 154.08 × 85.92 mm
- Weight: ~360 g
Software Features
- Supported media: Audio, video, PNG
- GUI elements: Text, number, button, progress bar, image, slider, gauge, QR code, video, audio, switch, combo box, and more
- Component features: Transparency, page load effects, animation
- Fonts: Anti-aliased
- Encodings: ASCII, UTF-8, GB2312, Big5, Shift-JIS, and others
7 Inch Nextion HMI Display With 800x480 Capacitive Touch
This 7 inch Nextion HMI display gives you an 800x480 screen (also configurable as 480x800) with 65K colors and a brightness of 300 nit that you can adjust from 0% to 100%. The capacitive touch panel responds to a light touch, which feels closer to a phone screen than a resistive panel. It belongs to the Nextion Intelligent Series, so screens are designed visually instead of being coded pixel by pixel.
Capacitive Touch HMI LCD for UART Control
As a capacitive touch HMI LCD, the NX8048P070-011C keeps the interface work inside the display. You build pages with buttons, sliders, gauges, text and images in the Nextion Editor using drag-and-drop components, then load the project onto the screen. After that, your controller talks to the display over a UART serial connection, sending short commands to change values and receiving touch events back. The serial speed ranges from 2400 to 921600 bps, and the same display works with any controller that has a serial port, such as an Arduino or an ESP32 board.
Nextion UART Display 800x480: Power, GPIO and Storage
This Nextion UART display 800x480 module runs from a 5V supply (operating range 4.75V to 6.5V), and a 5V 1A supply is the recommended choice. Besides the serial port it has 8 GPIO pins, two of which (IO6 and IO7) support PWM, plus a microSD card socket for FAT32 cards up to 32 GB and a built-in real-time clock that uses a CR1220 battery. The serial port is a 4-pin 2.54 mm header. Check the signal levels in the manufacturer's datasheet before connecting it to a 3.3V board.
Need a different version? See the NX8048P070-011C-Y 7" Intelligent Series HMI LCD With Frame for the framed model, or the smaller NX8048P050-011C 5" HMI LCD. You can also browse the full UART smart TFT LCD category.
Frequently Asked Questions
What is the NX8048P070-011C?
It is a 7 inch Nextion Intelligent Series HMI touch display with 800x480 resolution and a capacitive touch panel.
Is the NX8048P070-011C capacitive or resistive touch?
It uses a capacitive touch panel.
How to connect a Nextion display to Arduino?
Connect the display's 4-pin serial header to the board's TX/RX pins, plus power and ground. Power the display from a 5V 1A supply, and check the datasheet for the serial signal levels when using a 3.3V board.
How to program a Nextion display?
Design the pages in the Nextion Editor with drag-and-drop components, load the project onto the display, and then control it from your controller with serial commands.
What serial speed does it support?
It supports baud rates from 2400 to 921600 bps.
Does it have a microSD slot and a real-time clock?
Yes. It has a microSD socket (FAT32, up to 32 GB) and a built-in RTC that runs on a CR1220 battery.
How many GPIO pins does it have?
It has 8 GPIO pins (IO0–IO7), and IO6 and IO7 support PWM.
The NX8048P070-011C Nextion display brings a 7 inch 800x480 screen, capacitive touch, UART control, GPIO, microSD and RTC into one HMI module. If you are building a control panel or planning engineering graduation projects this term, RAM Electronics offers the NX8048P070-011C in Egypt together with other Nextion Intelligent Series displays. Contact us if you need help choosing the right size or version.
