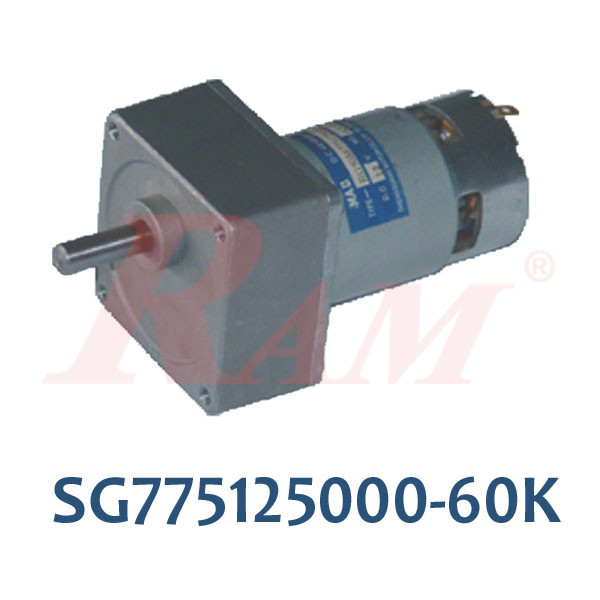

DC Geared Motor 12Vdc 83 rpm 2.79 N.m - Model SG775125000-60K

DC Geared Motor SG775125000 Series - 12VDC HIGH POWER LONG LIFE

Specification of geared motor:

• Rated Voltage: 12Vdc
• No Load Current: 500mA
• No Load Speed: 83 r/min
• Load Torque Current (With Load): 4A
• Load Torque Speed (With Load): 63 r/min
• Torque at maximum efficiency 87 kg.cm

• Load Torque: 28.5 kg.cm (2.79 N.m)
• Output Power: 20 W
• Stall Current: 14A
• Rotation direction: CW/CCW

• Motor Weight: 800~1000 gm

Note: We sell compatible Encoder for this motor at our online store.

Download

• Datasheet
• Motor Dimensions
