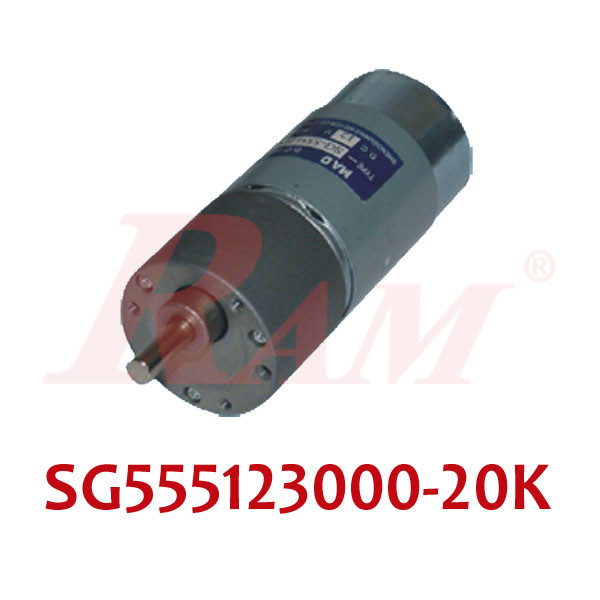

DC Geared Motor SG-555123000 Series - 12VDC LOW NOISE LONG LIFE
Specification of geared motor:
- Rated Voltage: 12Vdc
- No Load Current: 140mA
- No Load Speed: 150 r/min
- Load Torque Current (With Load): 800mA
- Load Torque Speed (With Load): 110 r/min
- Torque at maximum efficiency 7 kg.cm
- Load Torque: 2.3 kg.cm (0.23 N.m)
- Output Power: 2.9 W
- Stall Current: 3000mA
- Rotation direction: CW/CCW
- Motor Weight: 350~400 gm
Note: We sell compatible Encoder for this motor at our online store.
