Overview:
This 12V DC 72W Micro Electric Diaphragm Water Pump is a self-priming pump designed for various applications, including car washing, garden irrigation, and water transfer. It offers high pressure and adjustable flow, making it suitable for diverse tasks.
This is a Double-Sided Straight Tube Intelligent Pump.
Key Features:
- Self-priming diaphragm pump
- High pressure up to 130 PSI (0.9 MPa)
- Adjustable flow rate up to 6 L/min
- Automatic pressure switch for power protection
- Suitable for water and non-corrosive liquids
- Compact and lightweight design

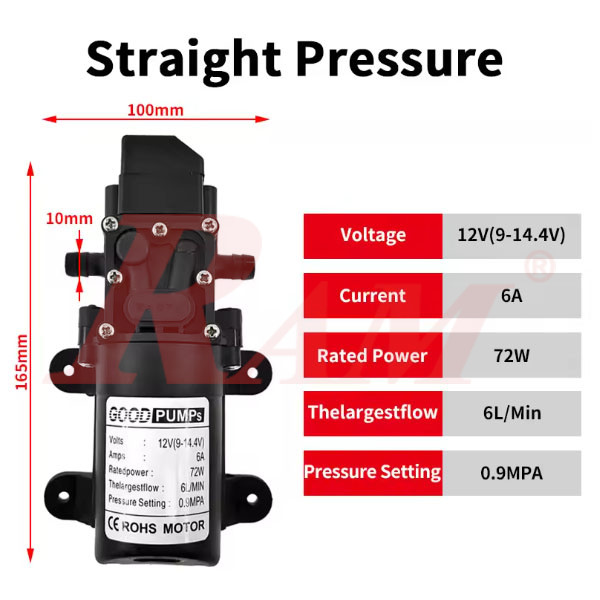

Specifications:
- Voltage: 12V DC
- Current: 6A
- Power: 70W
- Max Pressure: 130 PSI (0.9 MPa)
- Flow Rate: 4 to 6 L/min
- Inlet/Outlet Size: 10 mm or 20 mm (depending on model)
- Dimensions: Approximately 16.5 x 10 x 6.2 cm
- Weight: Approximately 600 g
- Medium Temperature: 0°C to 100°C
- Suitable Media: Water or water-based solvents with pH 5–8
- Duty Cycle: Intermittent (varies with pressure)
- Shell Material: ABS plastic
- Service Life: 500–1000 hours of continuous operation

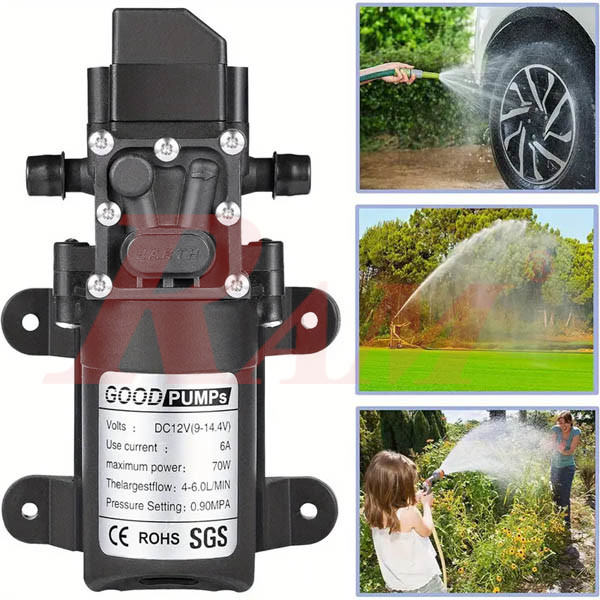

Applications:
- Car washing
- Garden and lawn irrigation
- Water transfer and circulation
- Spraying and misting systems
- General-purpose liquid pumping
