Out of stock

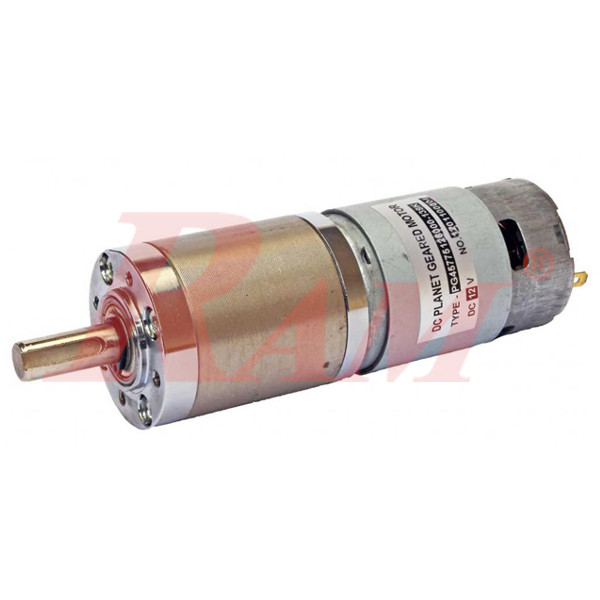

DC Planetary Geared Motor 12Vdc 100 rpm 53 Kgf·cm - 5.2 N·m - Model PG45775126500-71.2K
High Torque DC Motor
Internal Reference:
DC.PG455126000.71K
PG45775126500-71.2K 12V DC Planetary Geared Motor
Description:
The PG45775126500-71.2K is a heavy-duty 12V DC planetary geared motor designed for high-torque industrial and robotics applications. Built with a robust 45mm planetary gearbox attached to a 44.5mm motor housing, this unit delivers a rated load torque of 53 kgf·cm at an output speed of 83 RPM. It features counter-clockwise (CCW) standard rotation, a solid 10mm keyed output shaft, and precision M4 mounting threads on a 35mm pitch circle diameter (PCD).
Key Features:
- High-Torque Planetary Gearbox: Features a 45mm reduction gearbox capable of continuous 53 kgf·cm rated torque output.
- Keyed Output Shaft: Equipped with a 10mm diameter, 27mm long output shaft featuring a 4mm keyway for secure drive coupling.
- 12V DC Efficiency: Low energy consumption with under 2.0A no-load current draw (100 RPM) and under 8.0A rated load current draw (83 RPM).
- Counter-Clockwise (CCW) Operation: Configured for default counter-clockwise output shaft rotation.
- Standard Industrial Mounting: Integrated 4x M4 threaded mounting pattern (9mm thread depth) on a 35mm bolt circle.
Technical Specifications:
| Parameter | Specification | Source / Notes |
| Model Number | PG45775126500-71.2K | Official Model / Part Number |
| Drawing Number | PG45C71.2K775B1265-000Y-1 | Revision 1.0 Engineering Drawing |
| Motor Type | DC Planetary Geared Motor | Heavy-duty brushed DC motor |
| Nominal Voltage | 12V DC | Input operating voltage |
| Rotation Direction | Counter-Clockwise (CCW) | Default direction |
| No-Load Speed | 100 ± 10% RPM | Unloaded output speed |
| No-Load Current | < 2.000 A | Maximum current without load |
| Rated Load Speed | 83 ± 10% RPM | Operating speed under rated torque |
| Rated Load Torque | 53 kgf·cm (~5.2 N·m) | Nominal continuous load torque |
| Rated Current | < 8.00 A | Max current at rated torque |
| Gearbox Outer Diameter | Ø45 mm | Gearhead body width |
| Gearbox Housing Length | 56.2 ± 0.5 mm | Length of planetary section |
| Motor Body Diameter | Ø44.5 mm | Motor housing width |
| Motor Body Length | 66.5 mm | Length of electrical motor body |
| Output Shaft Diameter | Ø10 mm (+0 / -0.027 mm) | Drive shaft outer diameter |
| Output Shaft Extension | 27 ± 0.5 mm | Length from mounting face |
| Shaft Keyway Dimensions | 4 mm width (+0.025 / 0 mm) x 20 mm length | Integrated keyway slot |
| Mounting Interface | 4-M4 (9 mm thread depth) @ PCD Ø35 mm | Front face mounting holes |
