Overview:
The JGB37-555 series comprises high-performance DC geared motors designed for applications requiring precise control and high torque. With a 37mm diameter and robust metal gear construction, these motors are ideal for robotics, automation systems, and various DIY projects. Available in multiple gear ratios and voltage options (12V and 24V), they offer versatility to meet diverse operational needs.
Key Features:

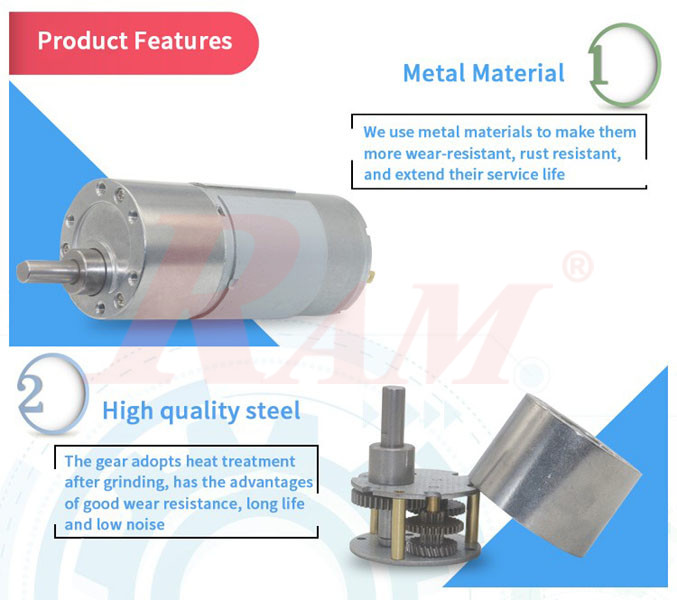

- Gear Type: Durable metal gears
- Motor Diameter: 37mm

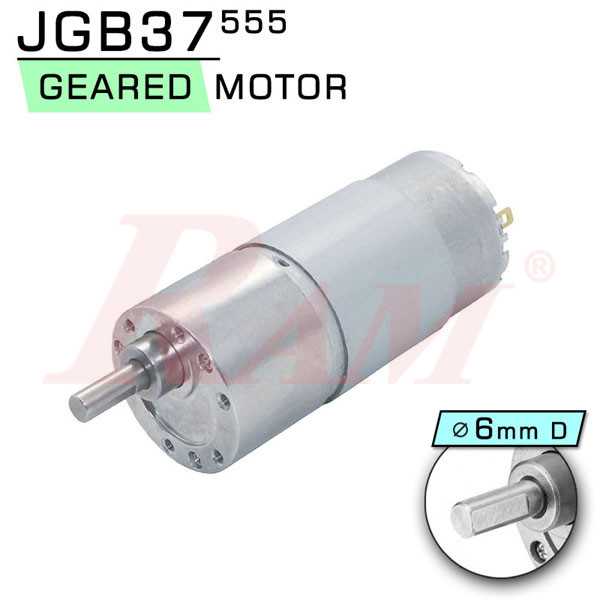

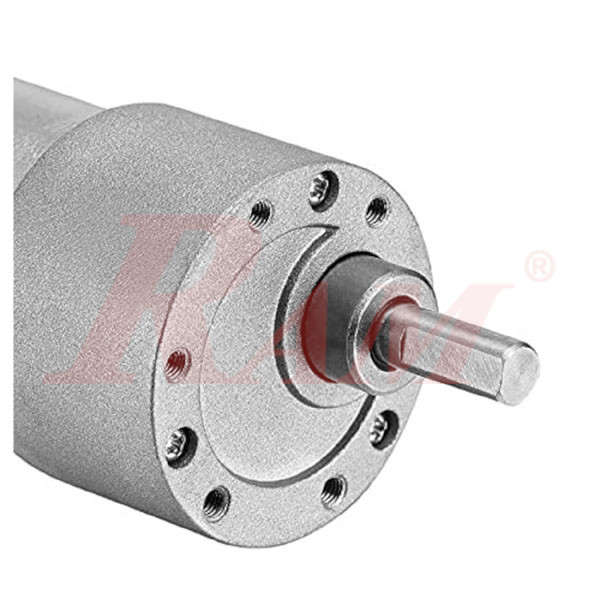

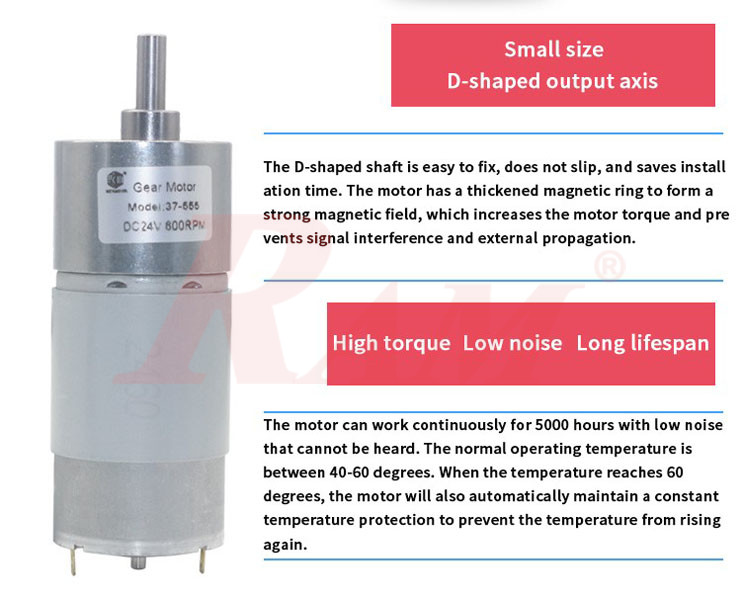

- Shaft Type: D-type
- Shaft Diameter: 6mm
- Applications: Robotics, automation, conveyor systems, electric vehicles, and more
Specifications:

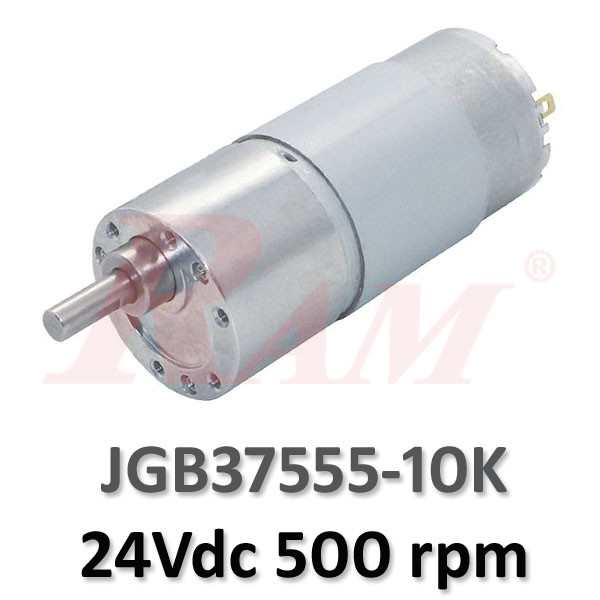

- Model: JGB37-555-10K
- Rated Voltage: 24V DC
- No-load Speed: 500 RPM ±10%
- No-load Current: 0.1 A
- Rated Speed: 407 RPM ±10%
- Rated Current: 0.9 A
- Rated Torque: 0.20 N·m
- Output Power: 8.56 W
- Stall Torque: 0.8 N·m
- Stall Current: 4 A
- Weight: 295 g
- L Size: 19 mm (In drawing)
- Gear Ratio: ~ 10 : 1
